Documentation

Manufacturing system that is used for collecting data from factory machines and factory operators.

Everything is stored in (postgresql) database with web as user interface.

Additional software is used for processing data.

Installation §

To install xMost you need Docker to keep our system running behind the scenes.

To know more about Docker go here -> Docker.

To download docker on your factory computer click here.

The next step in downloading xMost is downloading the actual system

xStock §

Data storing system for stock warehouses.

It keeps product, shipment and storing data in one place and keeps it more organised.

Installation §

To install xStock you need Docker to keep our system running behind the scenes.

To know more about Docker go here -> Docker.

To download docker on your factory computer click here.

Services §

Database §

Description

Go module that holds database structure, used in every system service. PostgreSQL 14 is used as a database service.

Installation Information

Install under docker runtime using this dockerfile image with this command:

Shell

$docker-compose up -d

Implementation Information

Check the software running with this command:

Shell

$docker stats

Database has to be running.

After installation fine tuning

use https://pgtune.leopard.in.ua/#/
- default: DB version 14
- default: OS Type Linux
- default: DB Type Mixed type of applications
- default: number of connections: 50 default + 10 per 1 workplace (for example: 150 per 10 workplaces)
update configuration using ALTER SYSTEM tab
restart database container

System Service §

Description

Go service automatically creates database on its first run, check database size and disc free space. Sends email, when disc space is low.

Installation Information

Install under docker runtime using this dockerfile image with this command:

Shell

$docker-compose up -d

Implementation Information

Check the software running with this command:

Shell

$docker stats

system_service has to be running. No need to make a specific setup.

Socket service §

Description

Go service downloads data from devices using socket communication.

Installation Information

Install under docker runtime using this dockerfile image with this command:

Shell

$docker-compose up -d

Implementation Information

Check the software running with this command:

Shell

$docker stats

socket_service has to be running.

Setup device for download

1. Add device to database: insert new data into devices table
- insert device name into name column
- insert proper device_type_id into device_type_id column
- set activated column to true
- insert proper ip address to ip_address column
- insert proper communication port to settings column
2. Setup data for download: check data on device in /log directory
- for analog data: insert new data into device_ports table
  - insert port name into name column
  - insert proper device_id into device_id column
  - insert 2 into device_port_type_id column
  - insert position from analog.txt into port number column
  - insert unit into unit column
  - set virtual column to false
- for digital data: insert new data into device_ports table
  - insert port name into name column
  - insert proper device_id into device_id column
  - insert 1 into device_port_type_id column
  - insert position from digital.txt into port_number column
  - insert unit into unit column
  - set virtual column to false
- for serial data: insert new data into device_ports table
  - insert port name into name column
  - insert proper device_id into device_id column
  - insert 3 into device_port_type_id column
  - insert position from serial.txt into port_number column
  - insert unit into unit column
  - set virtual column to false
3. Setup virtual ports (additional) Virtual ports are calculated from physical data on-the-fly. That means data are inserted into database in exactly the same time as original data from device. To add virtual port
- insert all data into device_ports table as above
- set port_number to specific value not found in physical files (use 101, etc.)
- set virtual to true
- set settings to desired outcome

Settings examples

virtual analog port example: $20$ * 23: result is whatever data is in port id 2- times 23
virtual analog port example: $20$ + $21$/2
virtual digital port example: ($2$ > 1) && ($1$==1): result is 1 if data in port id 2 > 1 and data in port id 1 is 1
virtual digital port example: ($1$==1) && ($2$==1) && ($3$==0)
virtual digital port example: ($1$==1) || ($2$==1) || ($3$>==1)
virtual digital port with CHECKPORT;$23$:$12$;$32$ will check for portid 23 if in its 1 to 0 duration there are signals for port 12 and 23, if there are this virtual port will be saved with duration like port id 23
physical analog port data replacement on the fly: just paste /200 to save values divided by 200, etc.
physical digital port with ADDZERO settings will save 1 and 0 immediately when 1 came, ignores original 0 data

Go service that creates data for workplaces (based on digital and analog records) and inserts them into state_records table Service also creates, closes and updates records in order_records table Service also creates and closes records in downtime_records table Additional SSE server streaming data running on port 91.

Installation Information

Install under docker runtime using this dockerfile image with this command:

Shell

$docker-compose up -d

Implementation Information

Check the software running with this command:

Shell

$docker stats

State_service has to be running.

Setup workplace for processing

1. Add workplace to database: insert new data into workplaces table

insert workplace name into name column
insert 1 into workplace_section_id column
insert 1 into workplace_mode_id column

2. Asign device_ports to workplace in workplace_ports table

insert workplace port name into name column
assign proper device_port_id into device_port_id column
assign proper state_id into state_id column
- state_id with value 1 has to be assigned to device_port_type.name Digital
- state_id with value 2 has to be assigned to device_port_type.name Analog
assign proper workplace_id into workplace_id column
assign true for port you want to calculates OK pcs into counter_ok column
- this port should be of type device_port_type.name Digital
assign true for port you want to calculates NOK pcs into counter_nok column
- this port should be of type device_port_type.name Digital

System webservice §

Description

Go web service for user UI

Installation Information

Install under docker runtime using this dockerfile image with this command:

Shell

$docker-compose up -d

Implementation Information

Check the software running with this command:

Shell

$docker stats

System_service has to be running. No need to make a specific setup.

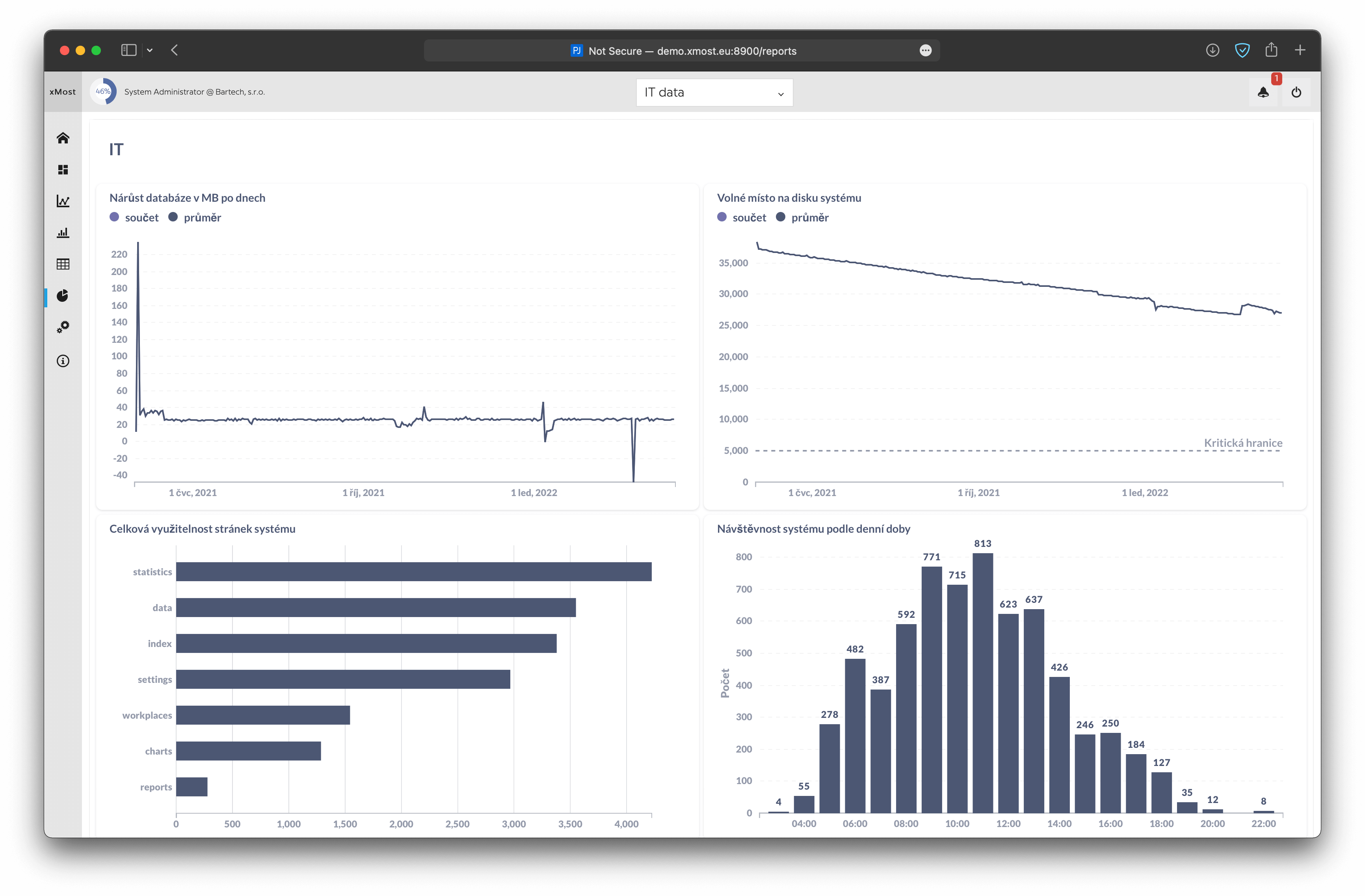

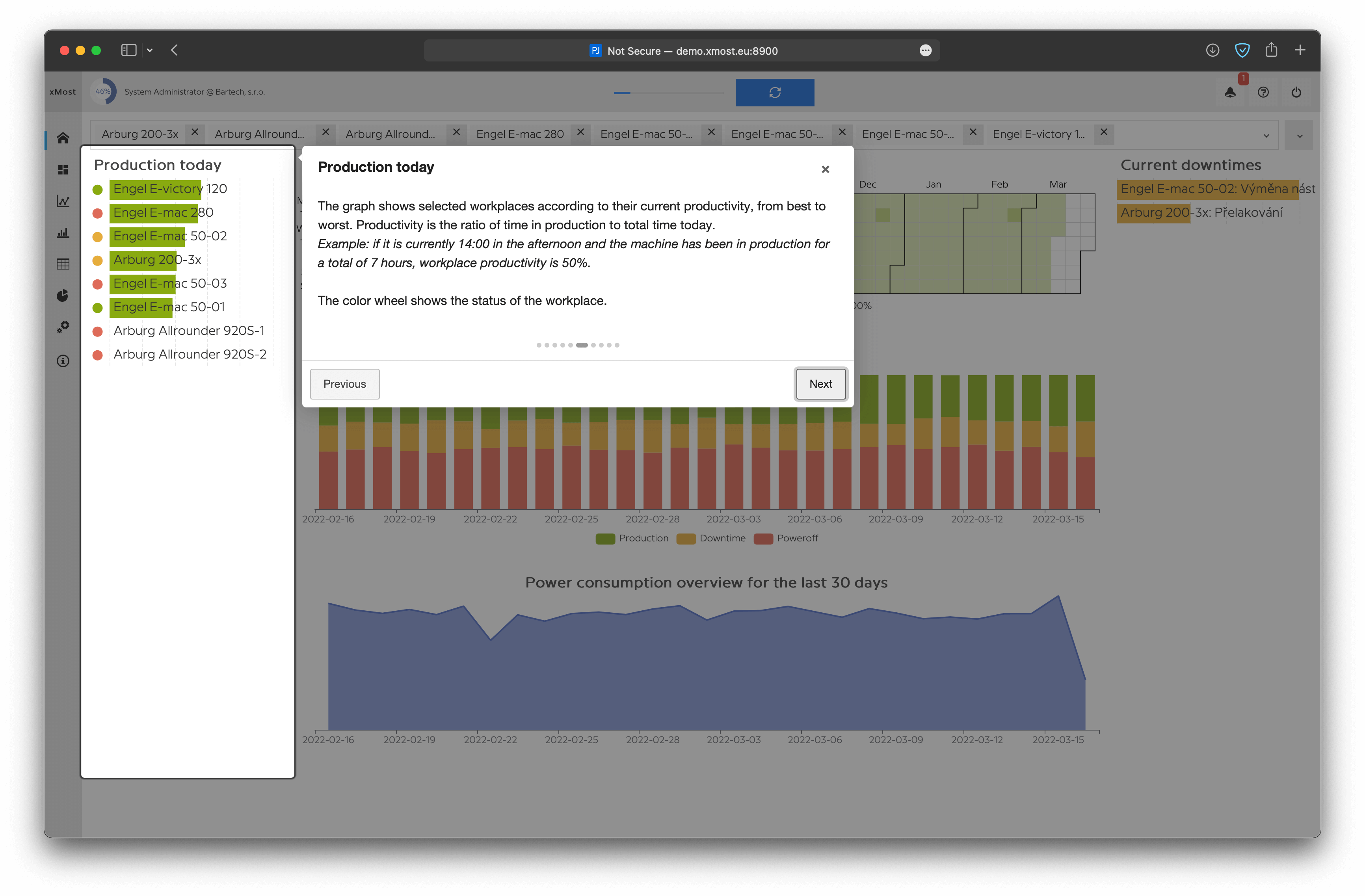

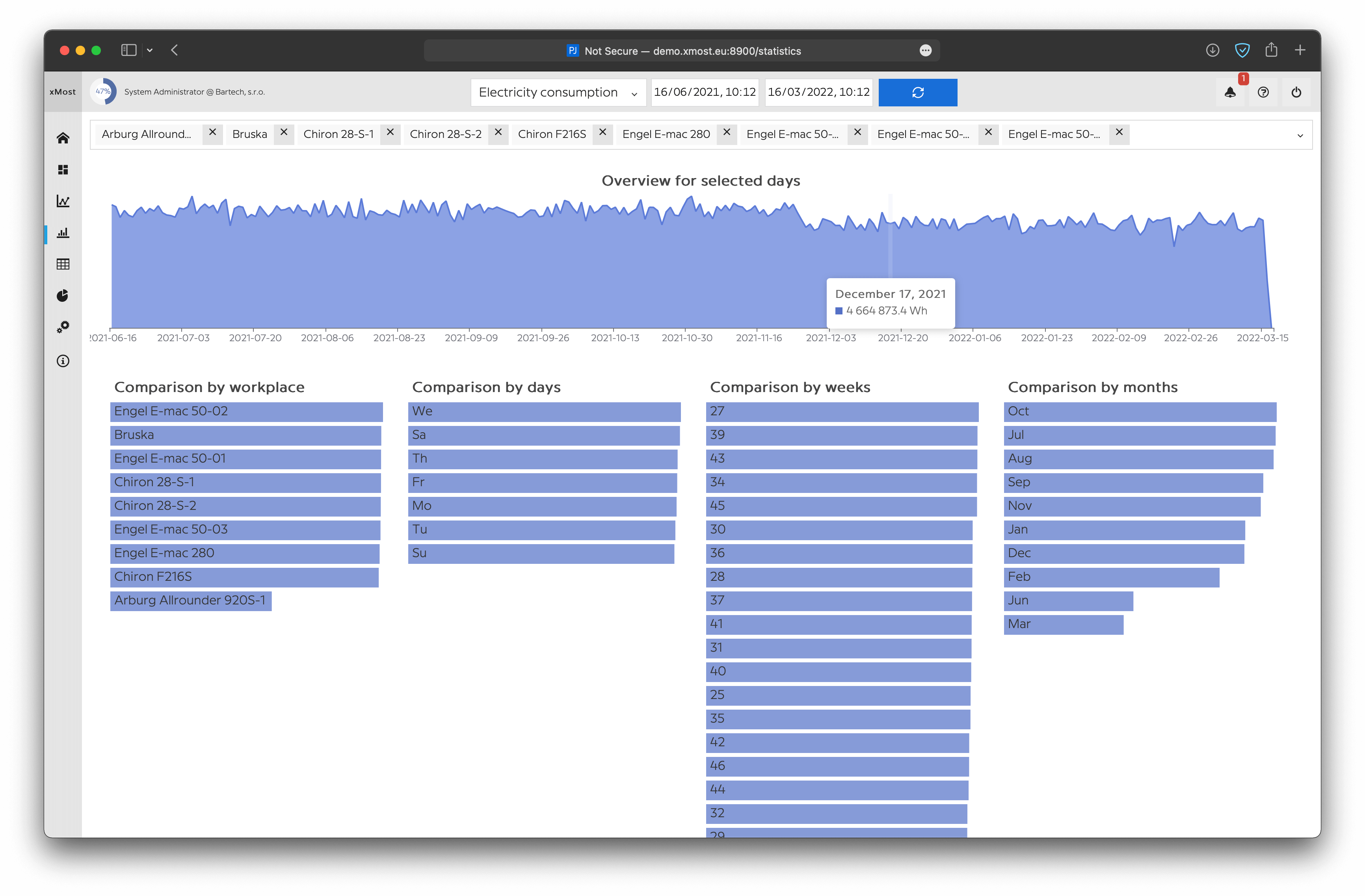

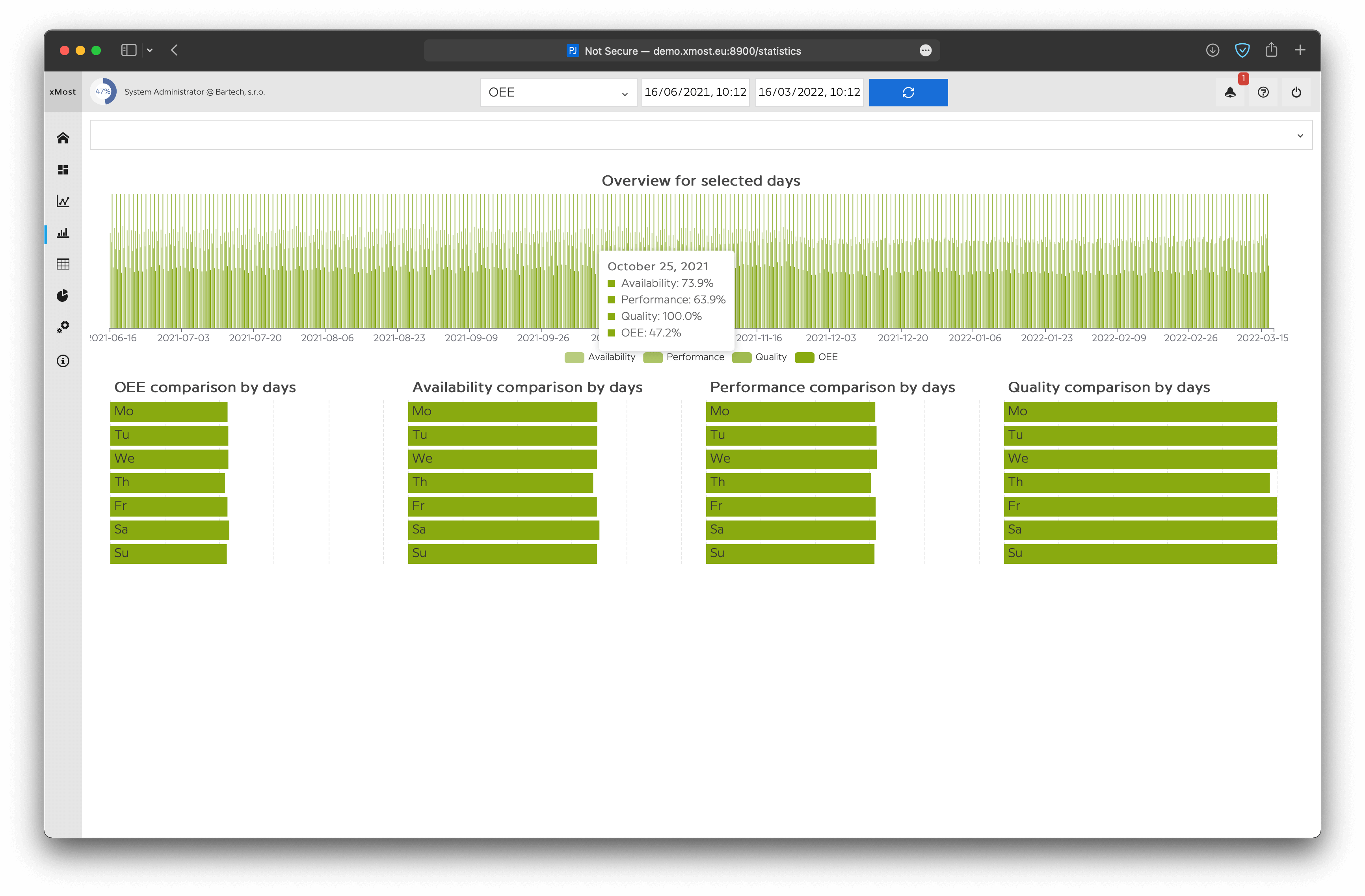

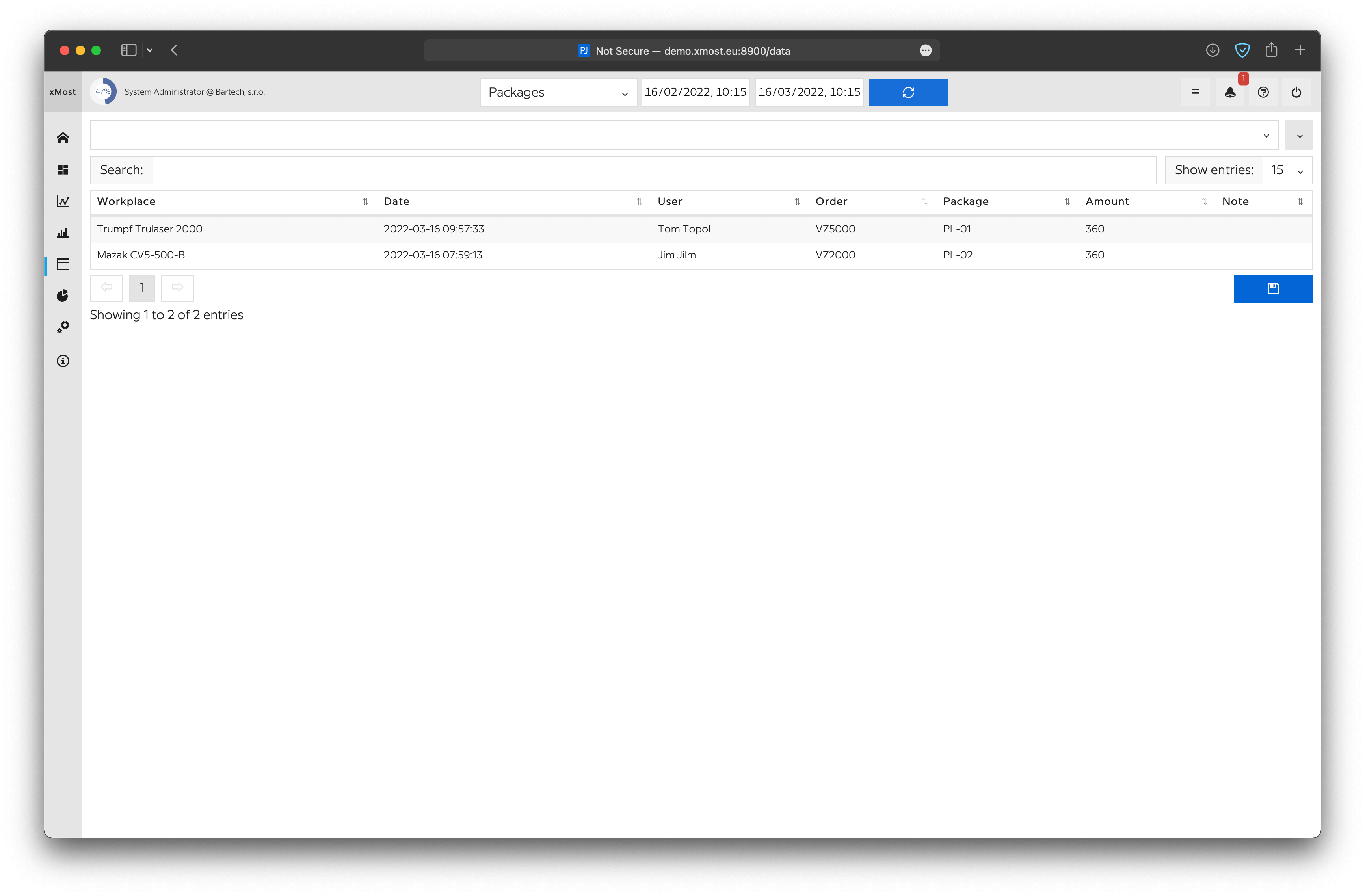

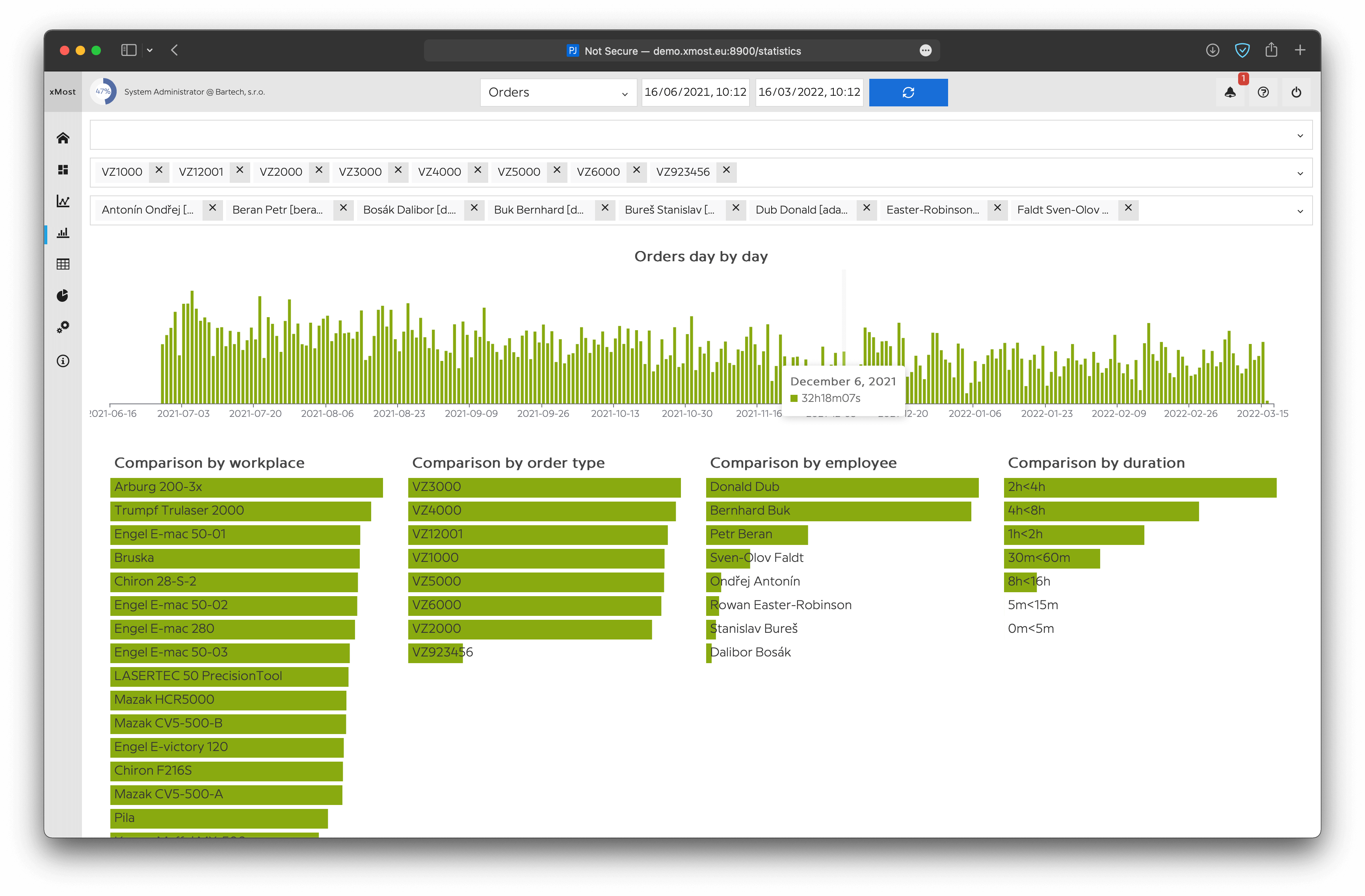

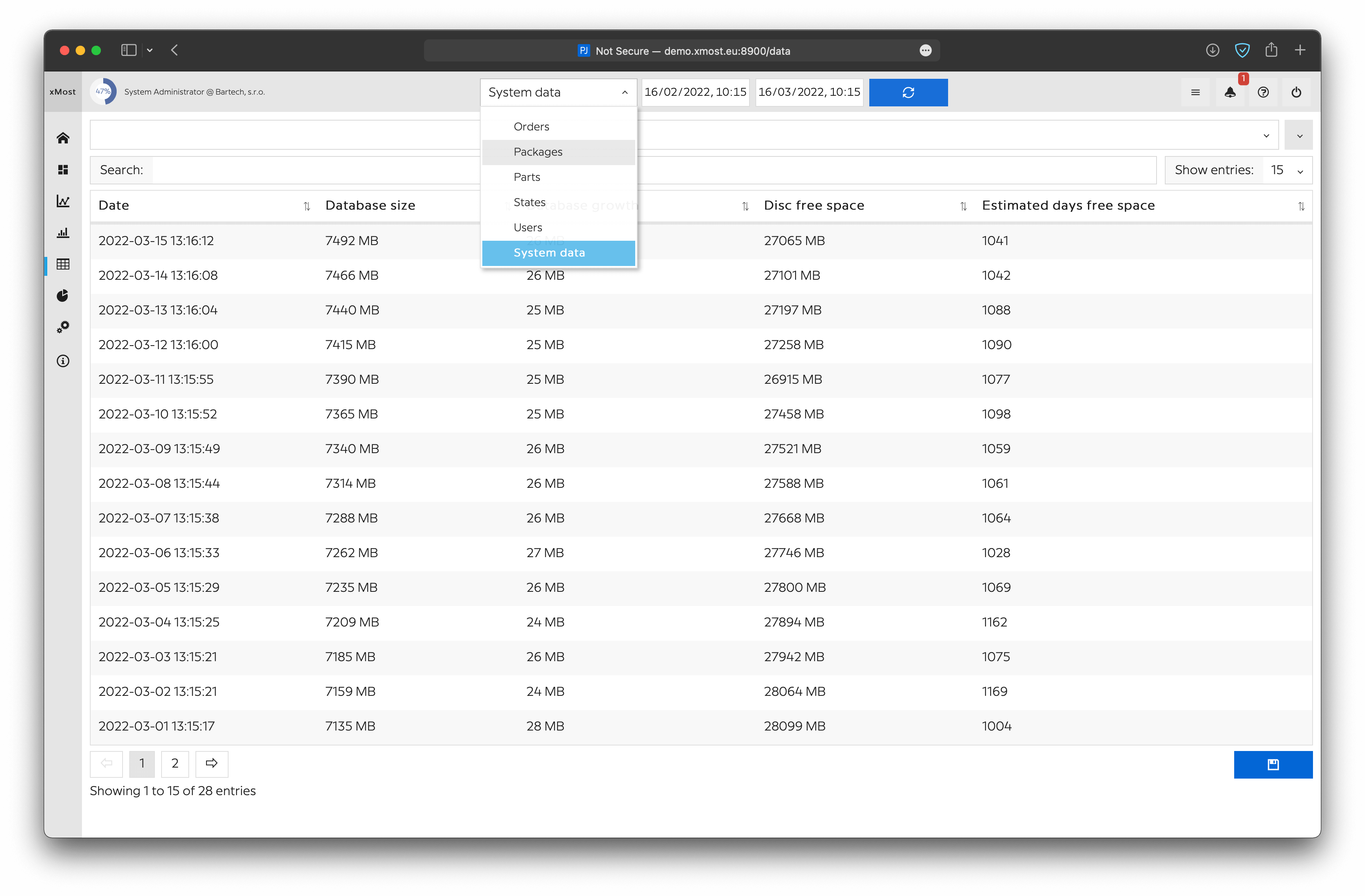

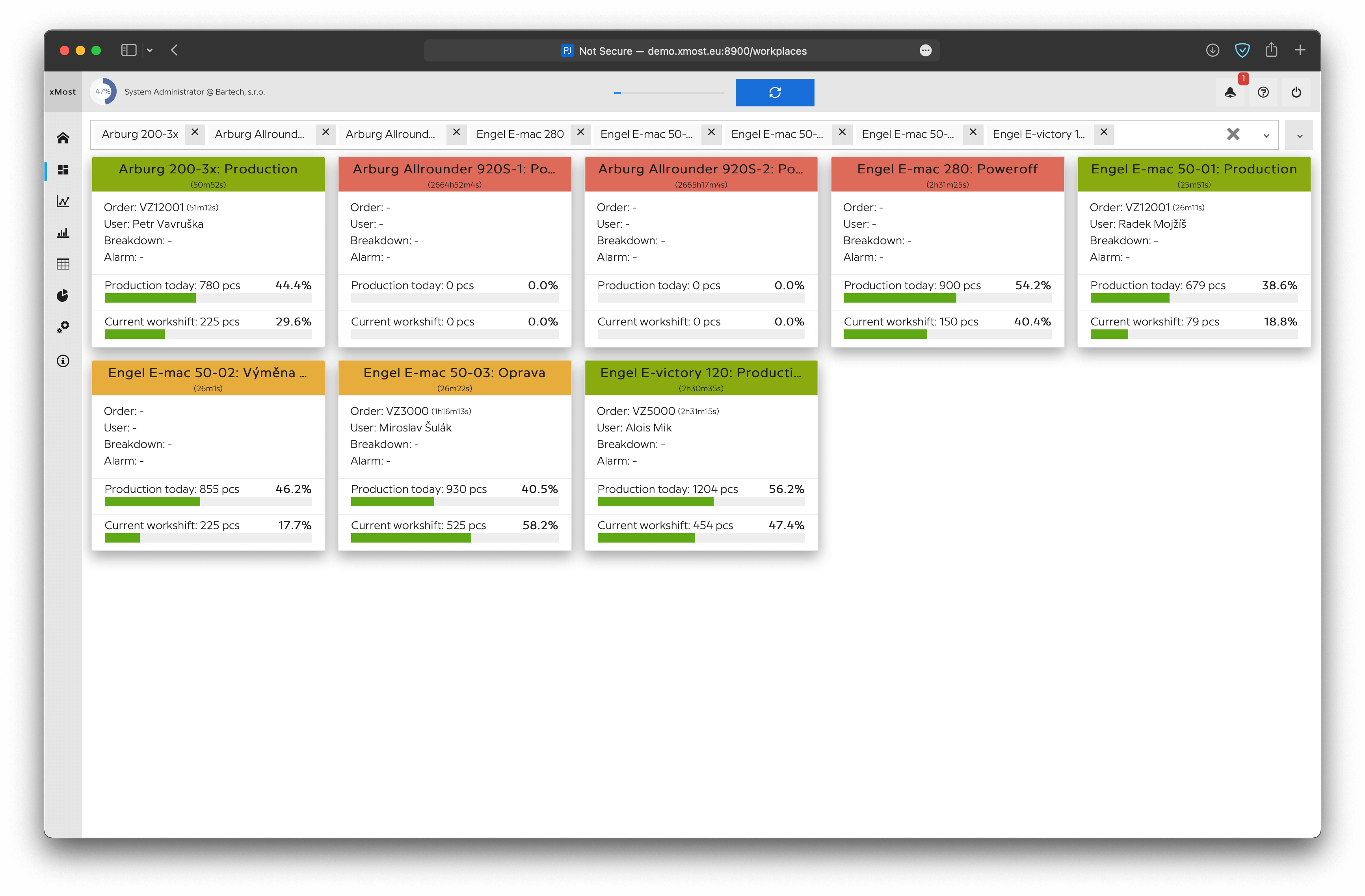

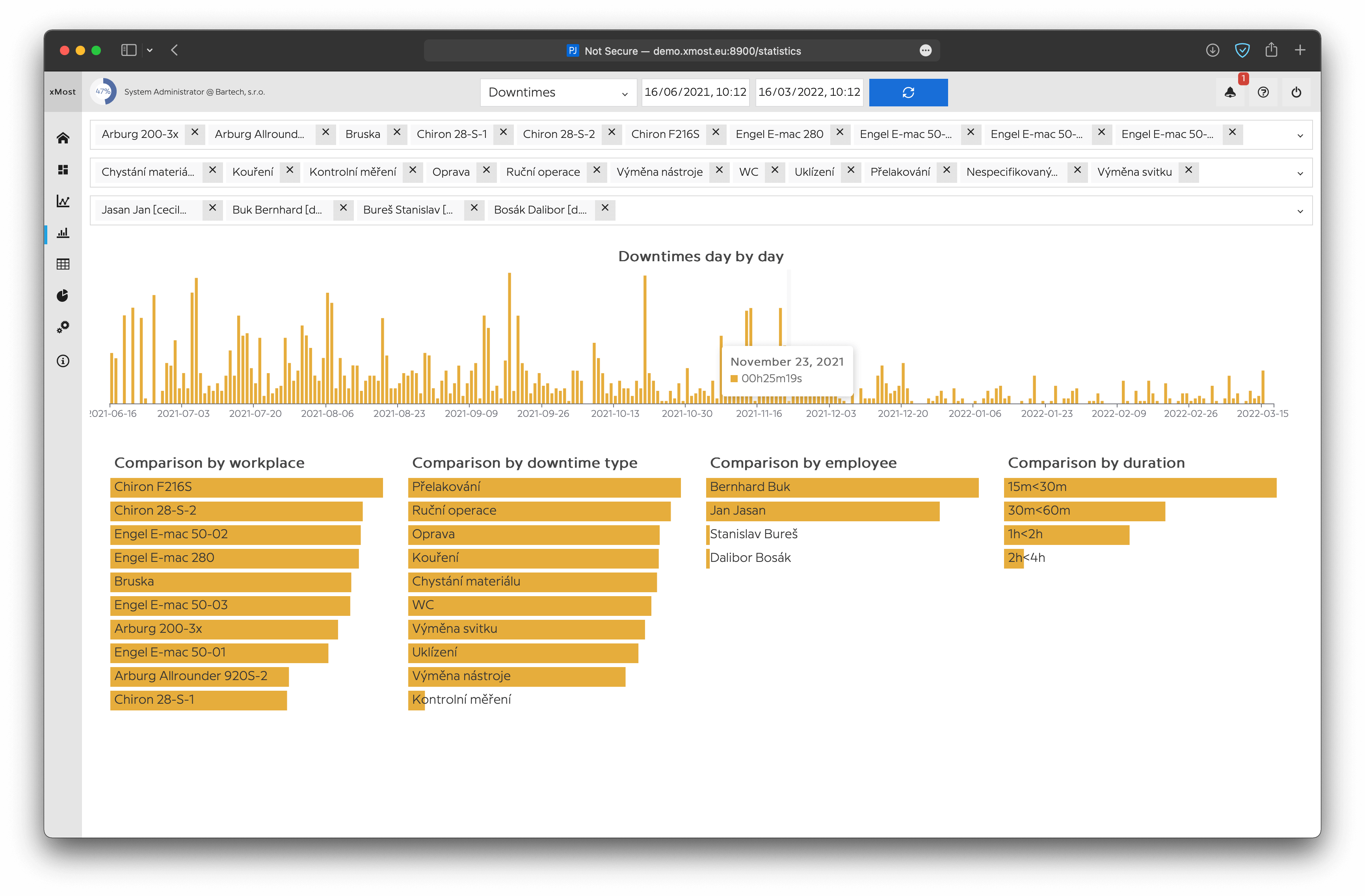

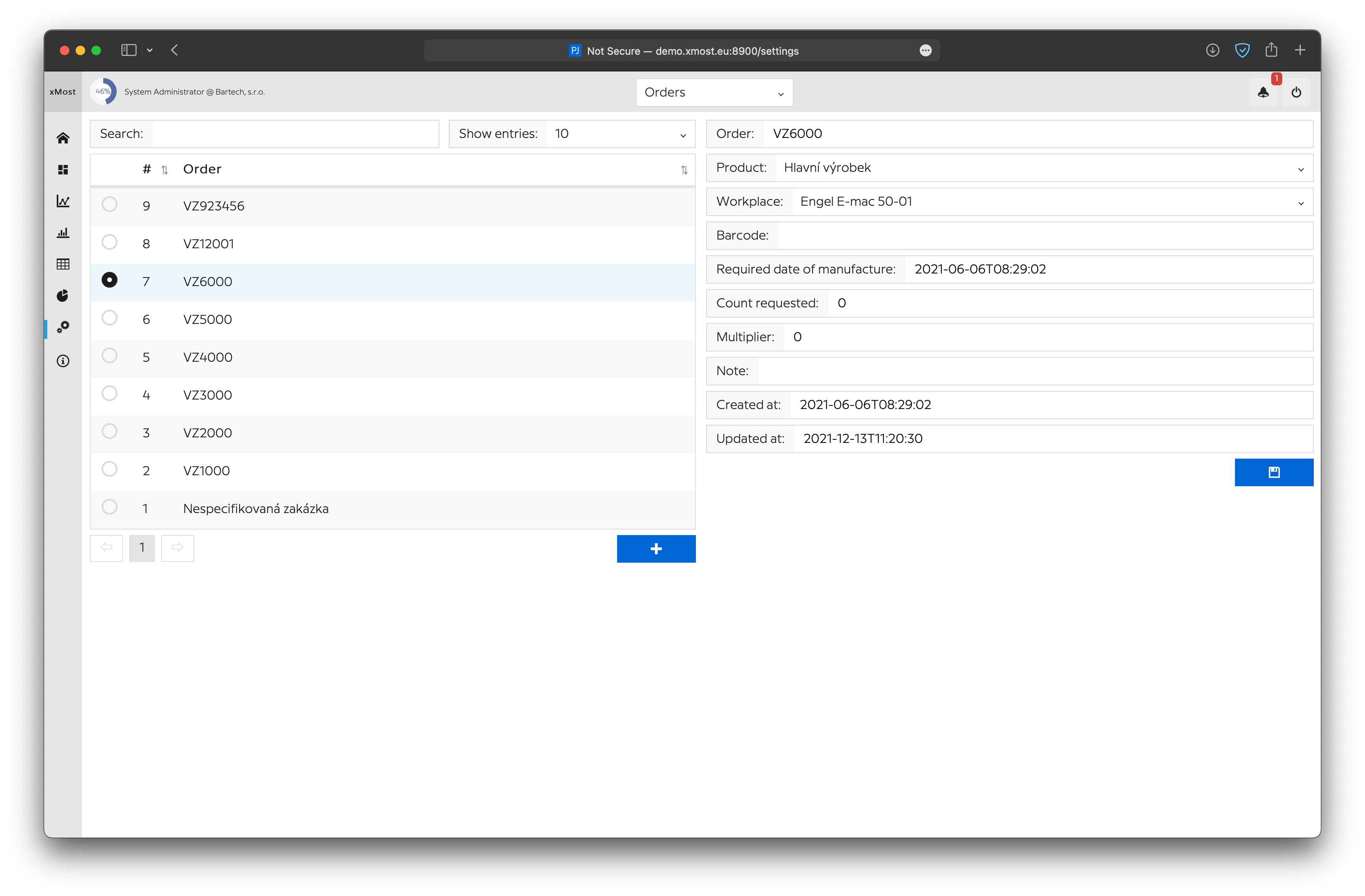

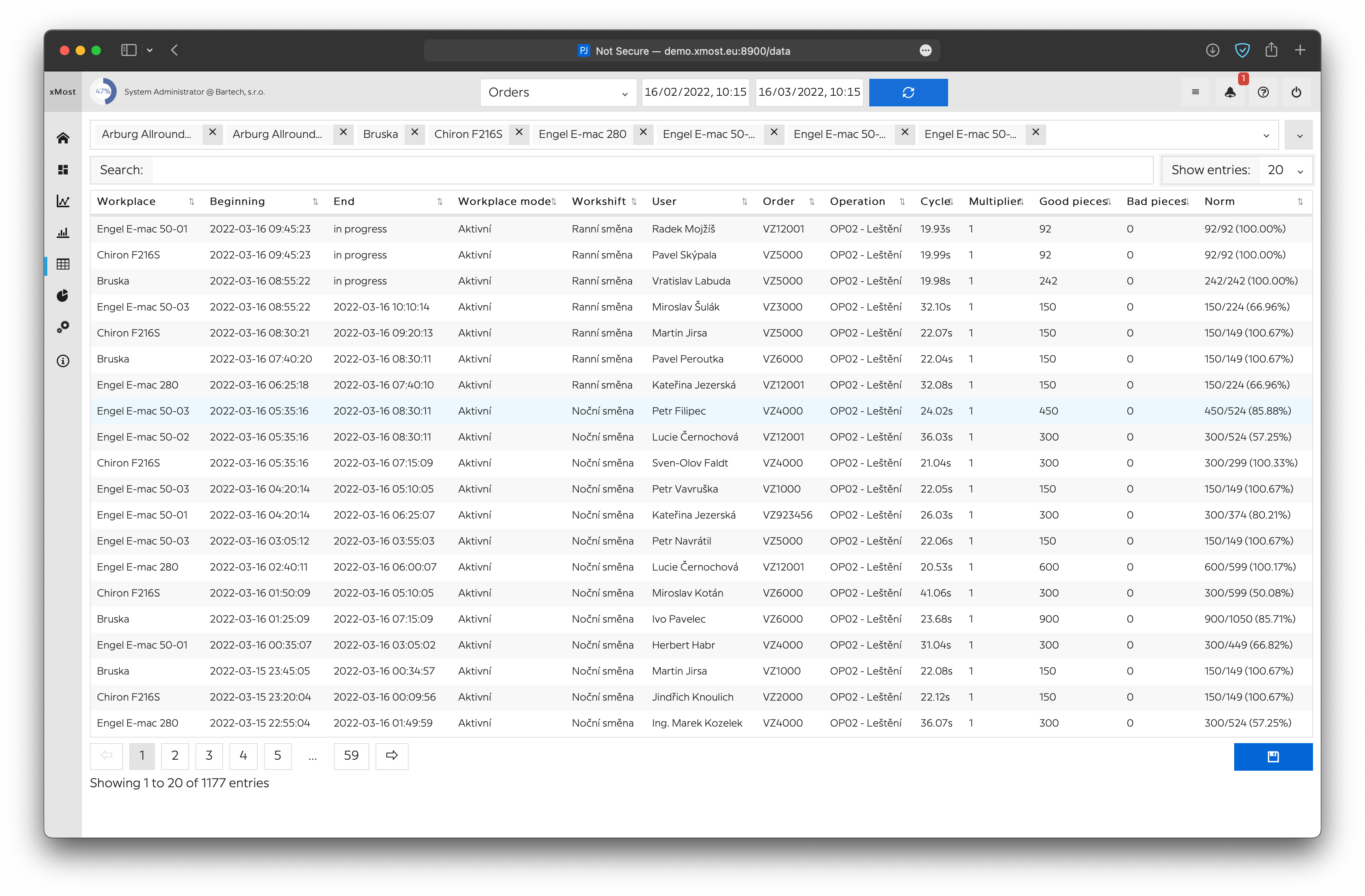

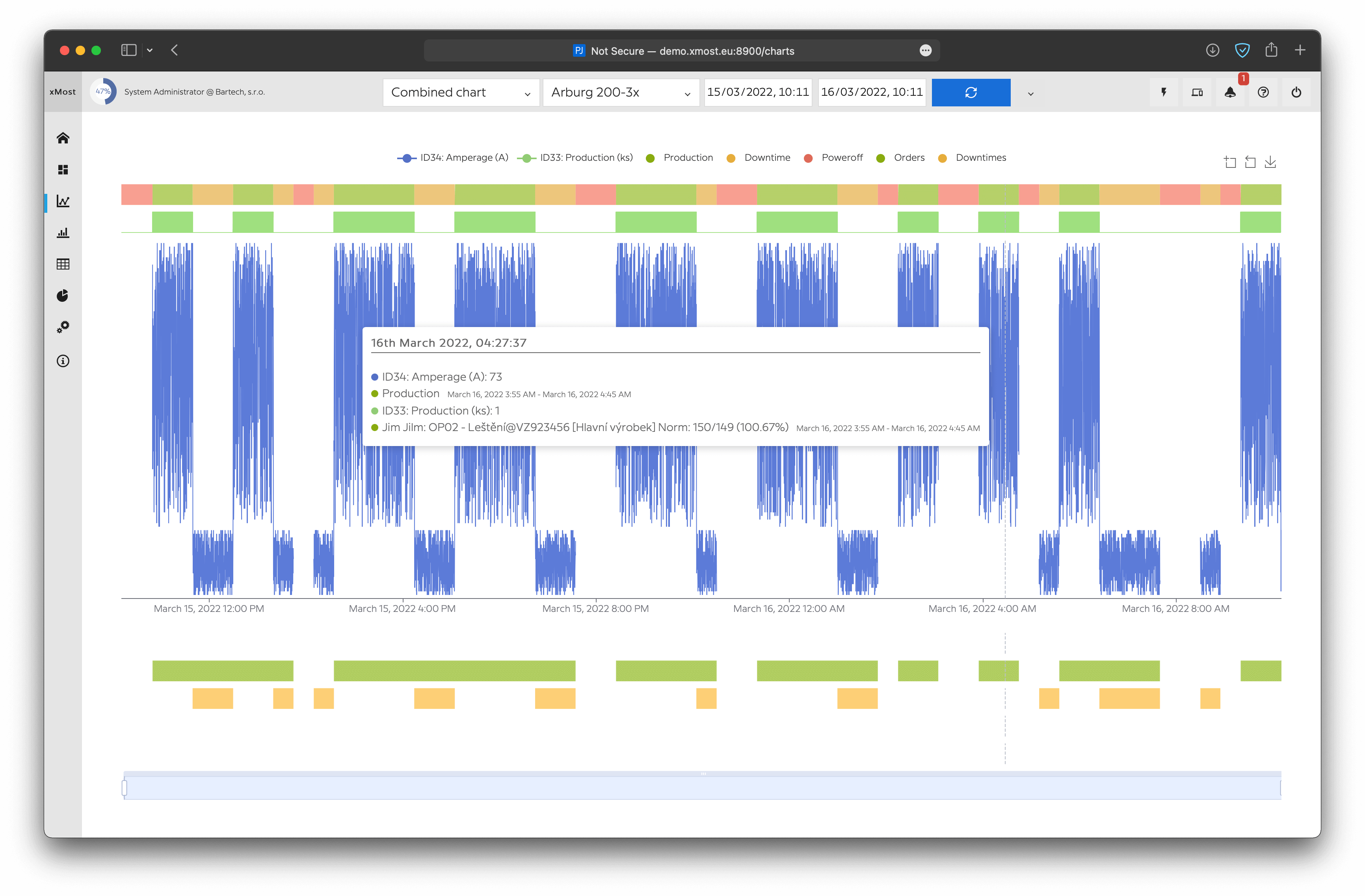

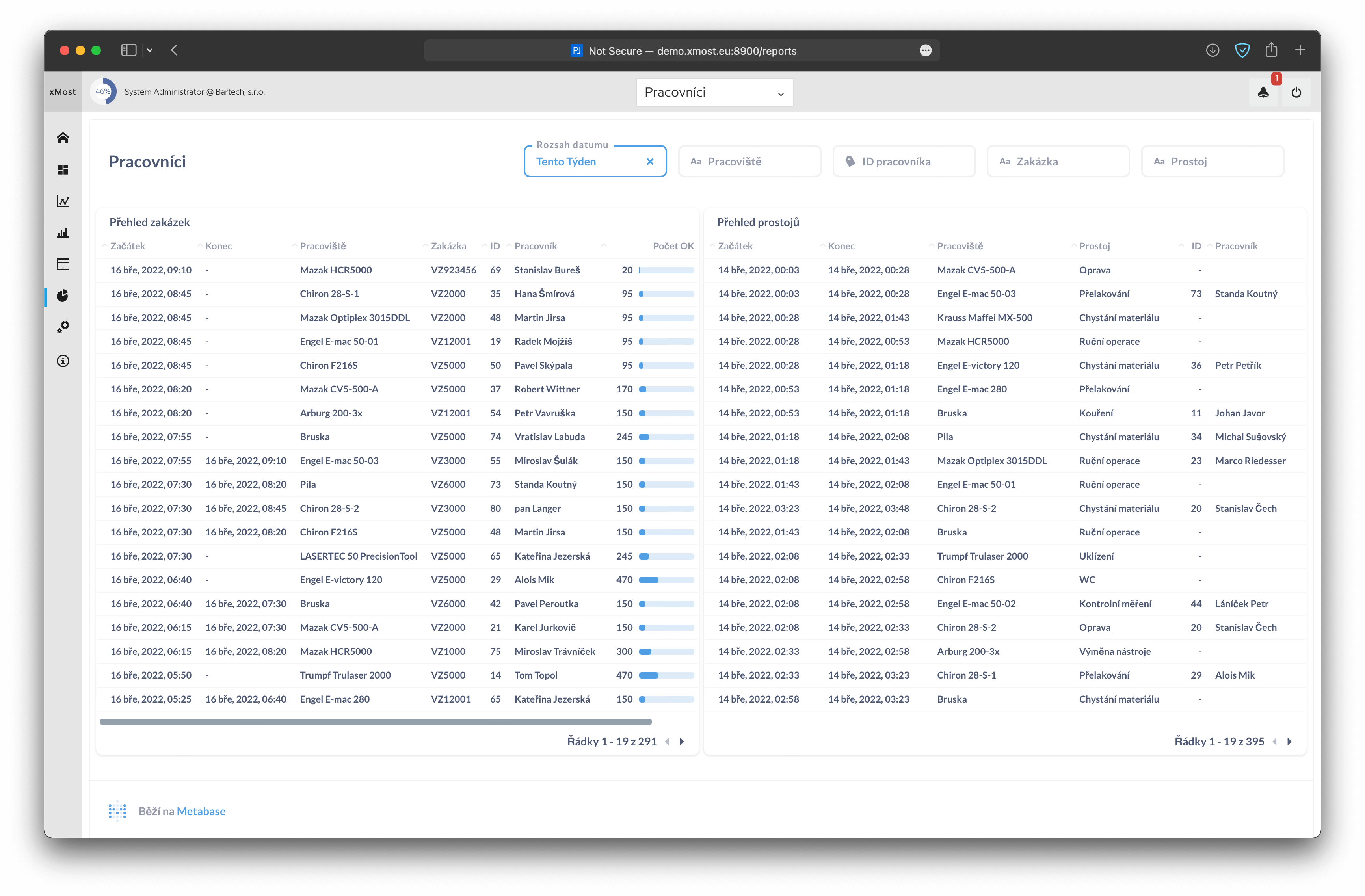

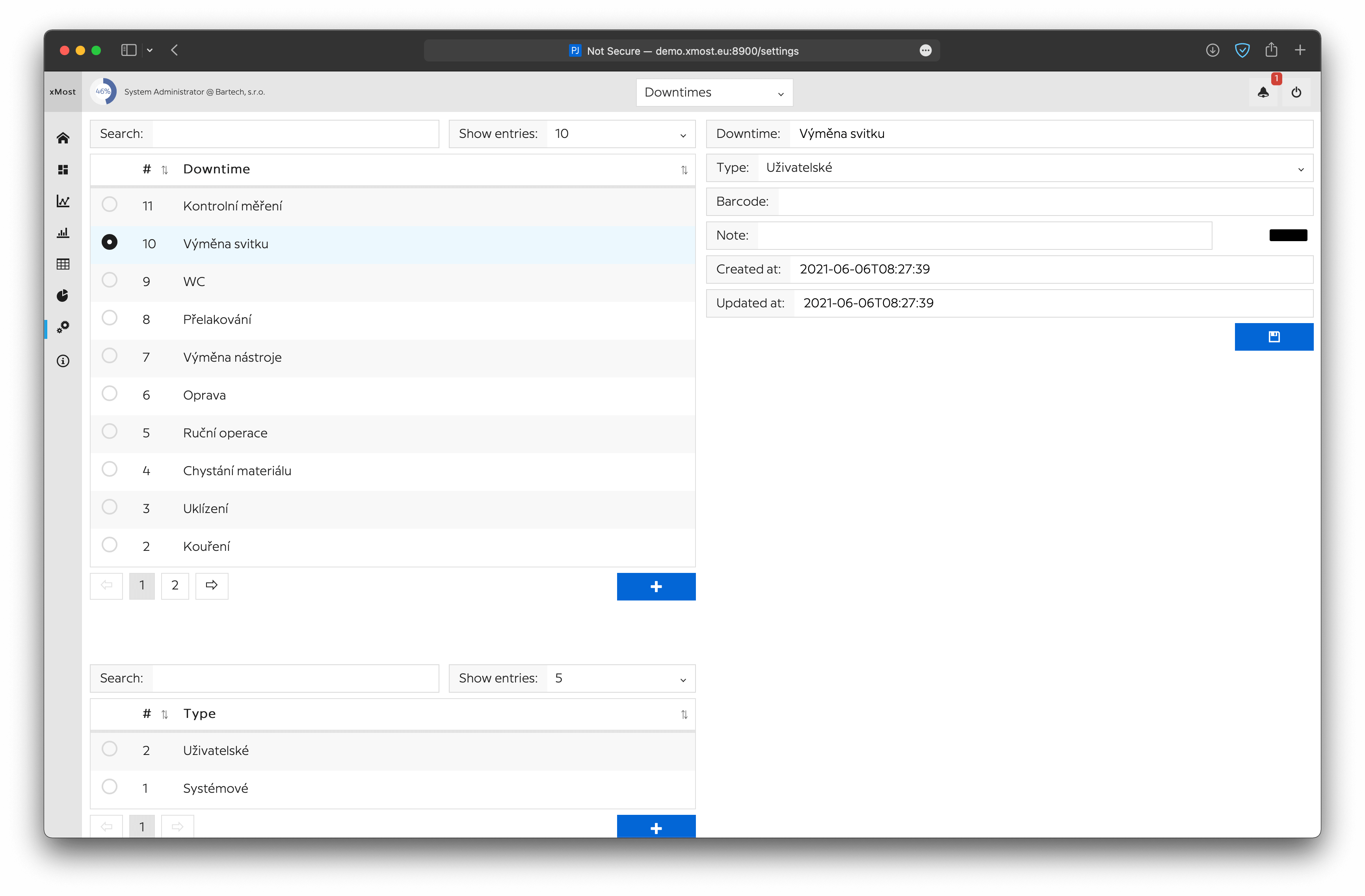

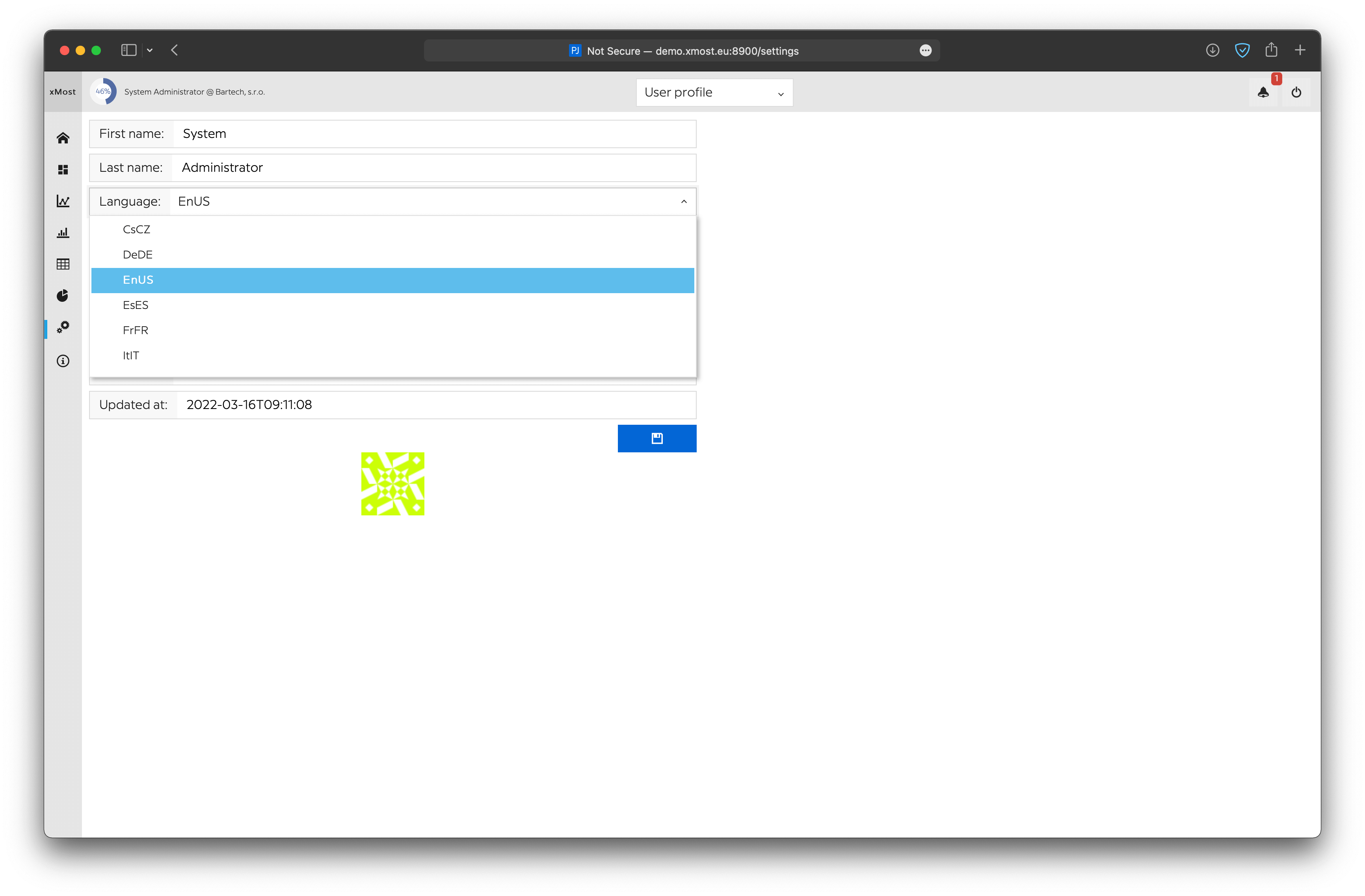

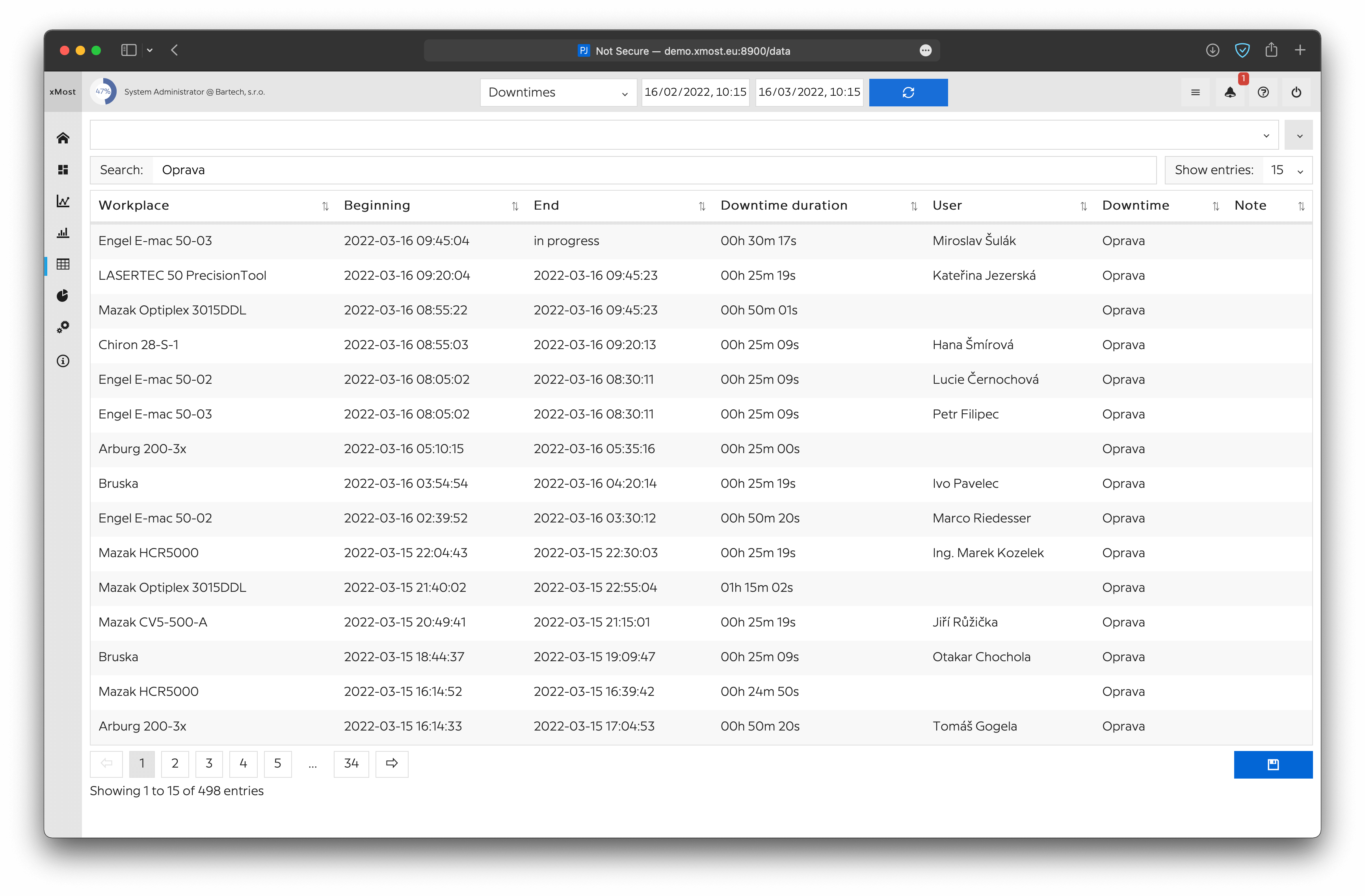

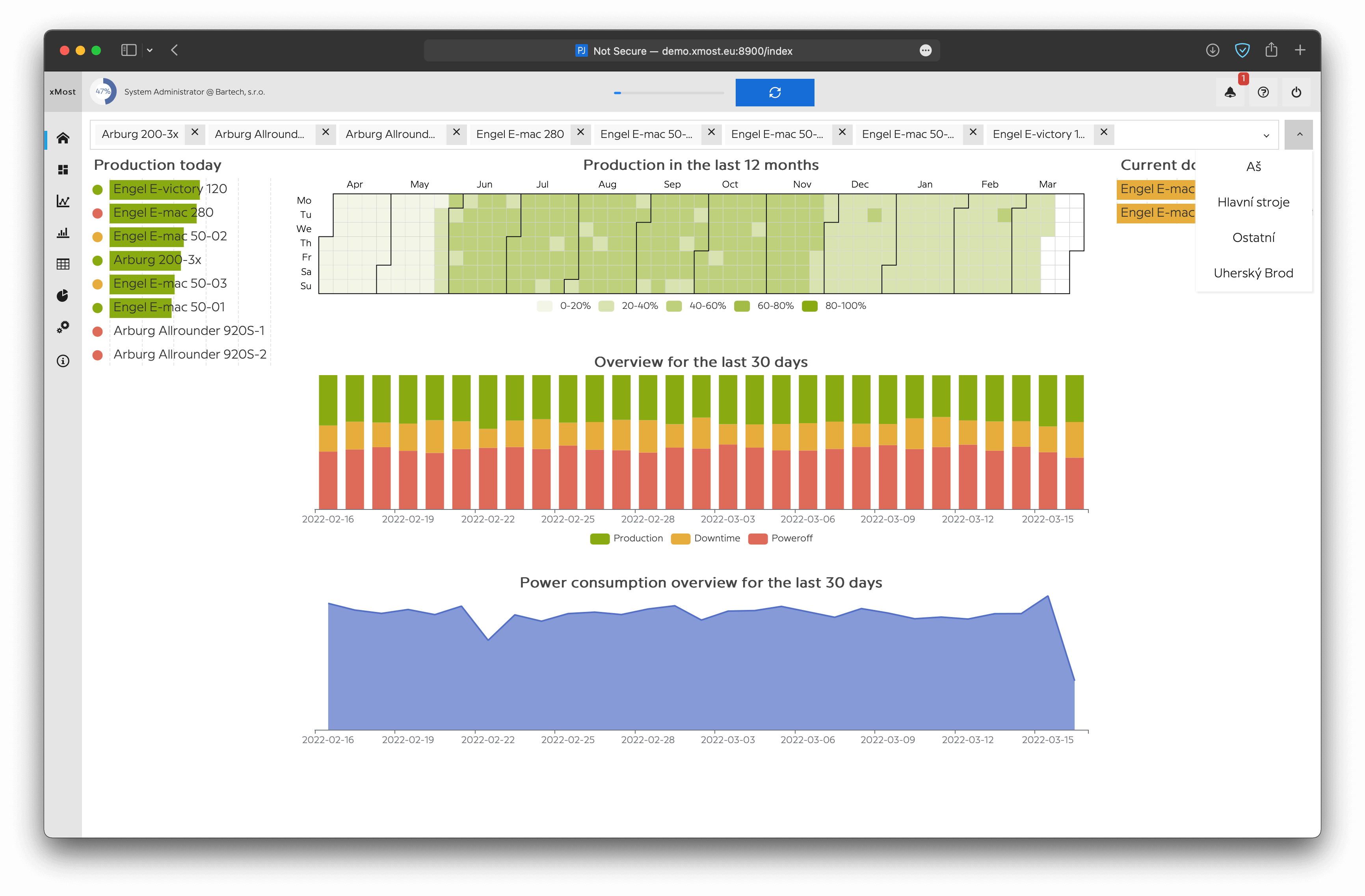

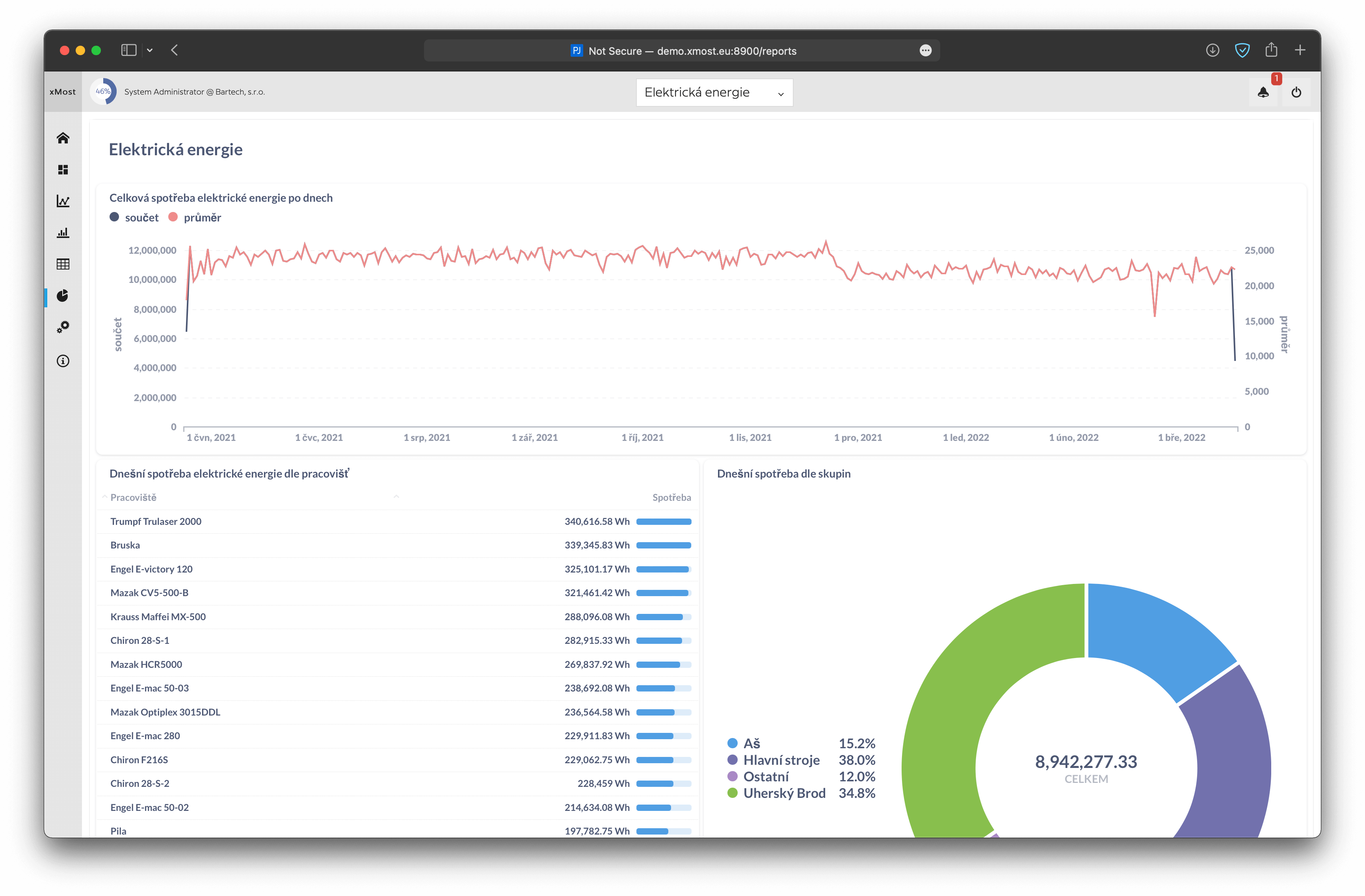

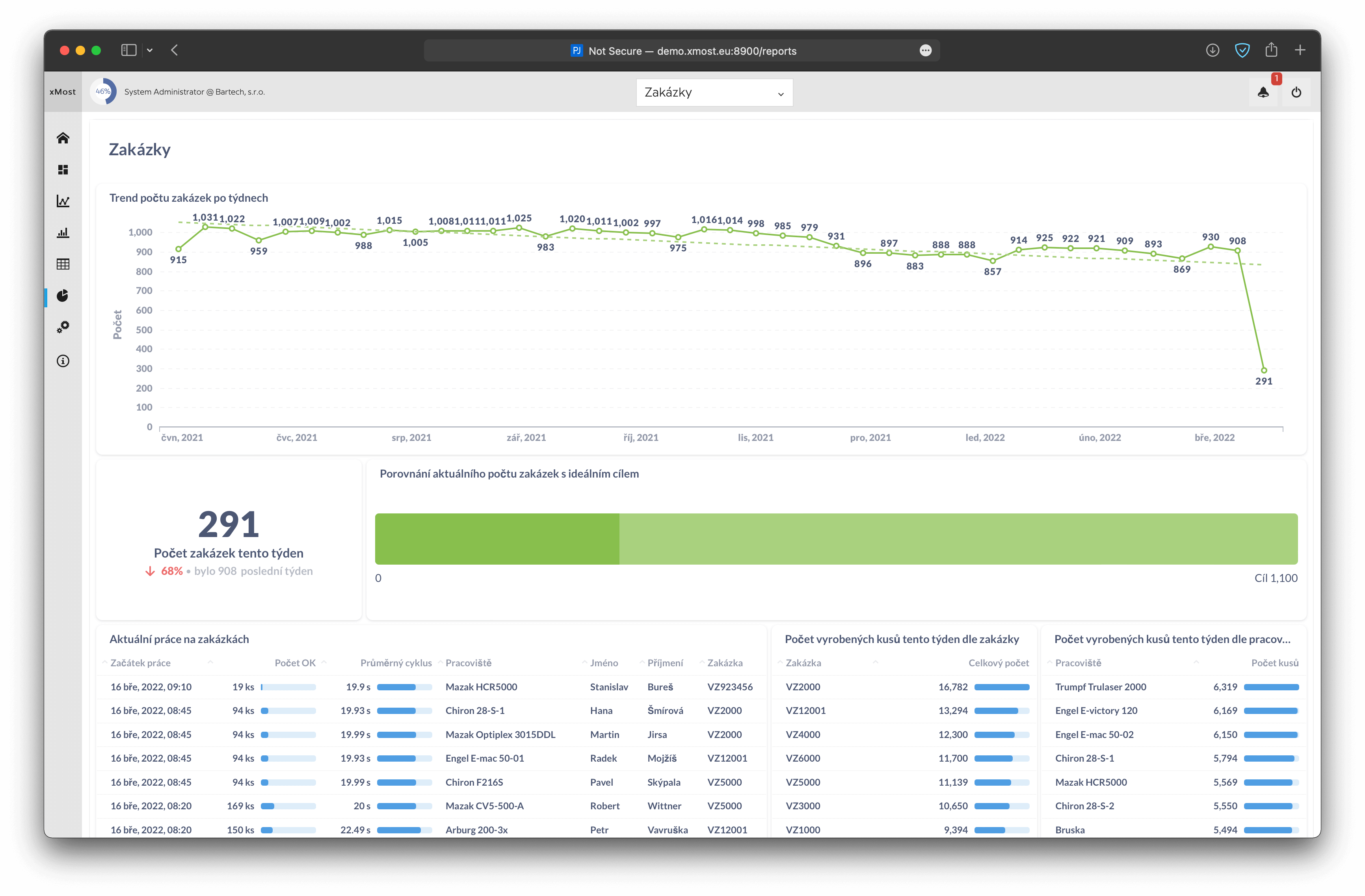

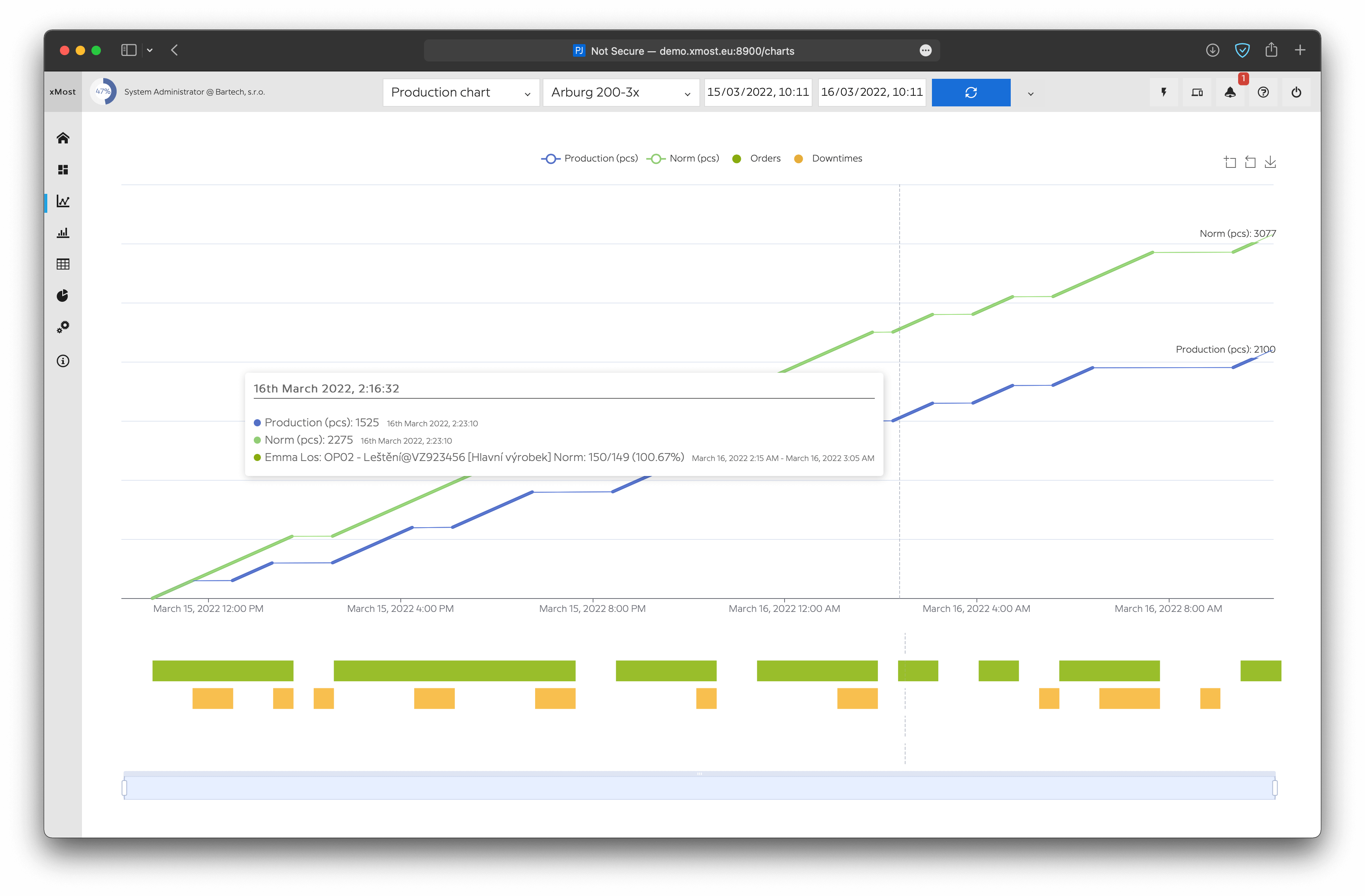

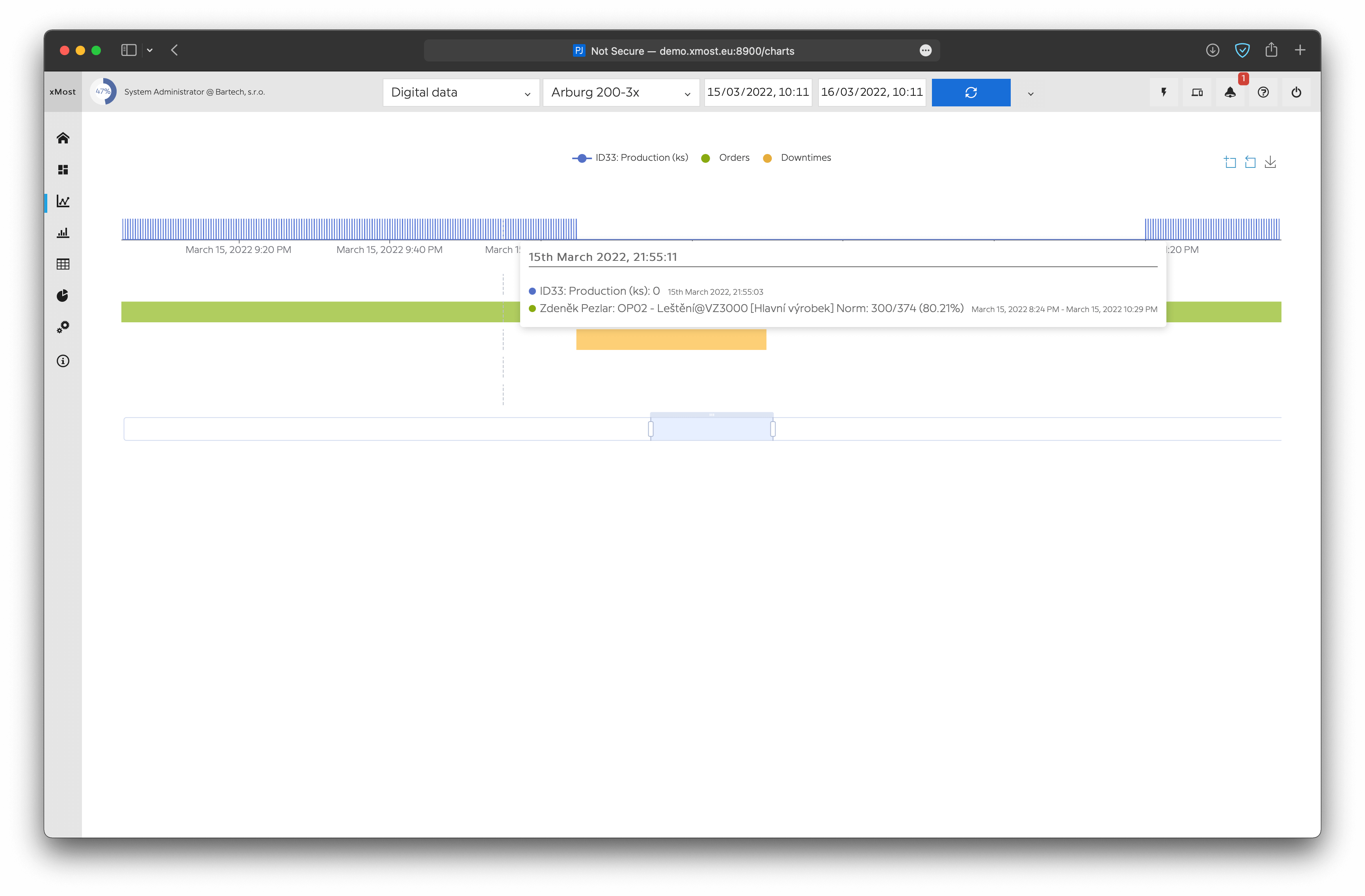

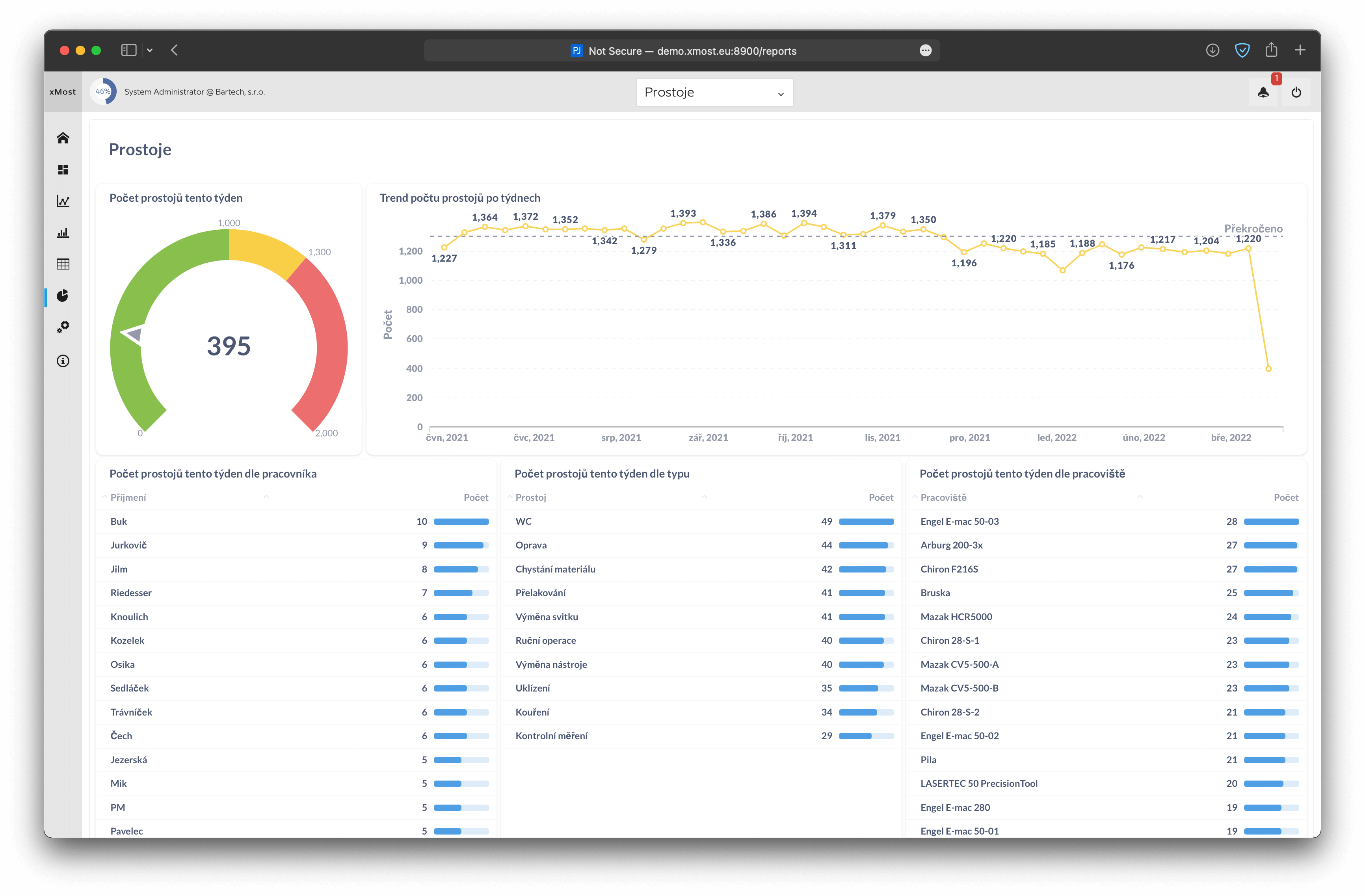

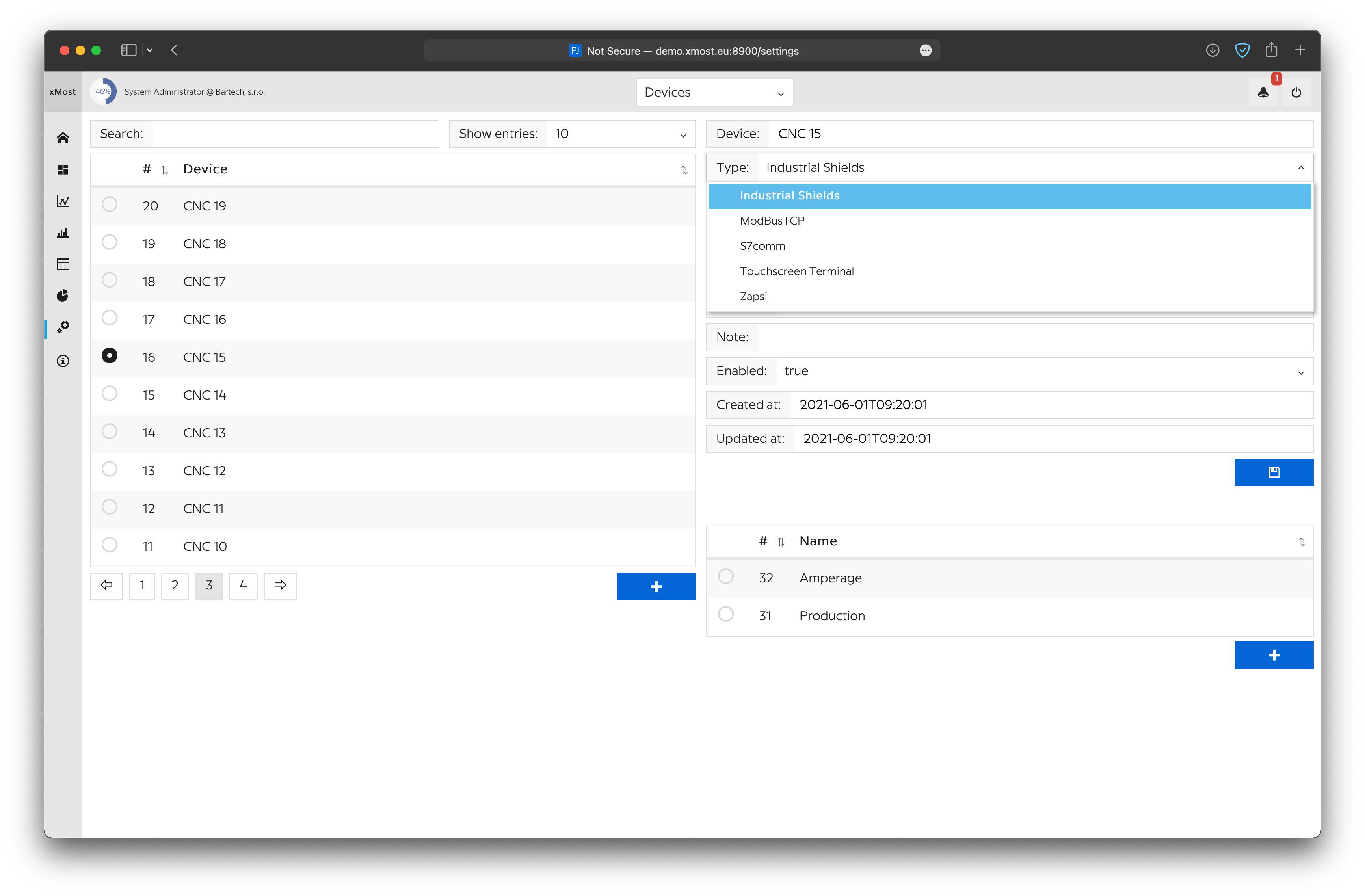

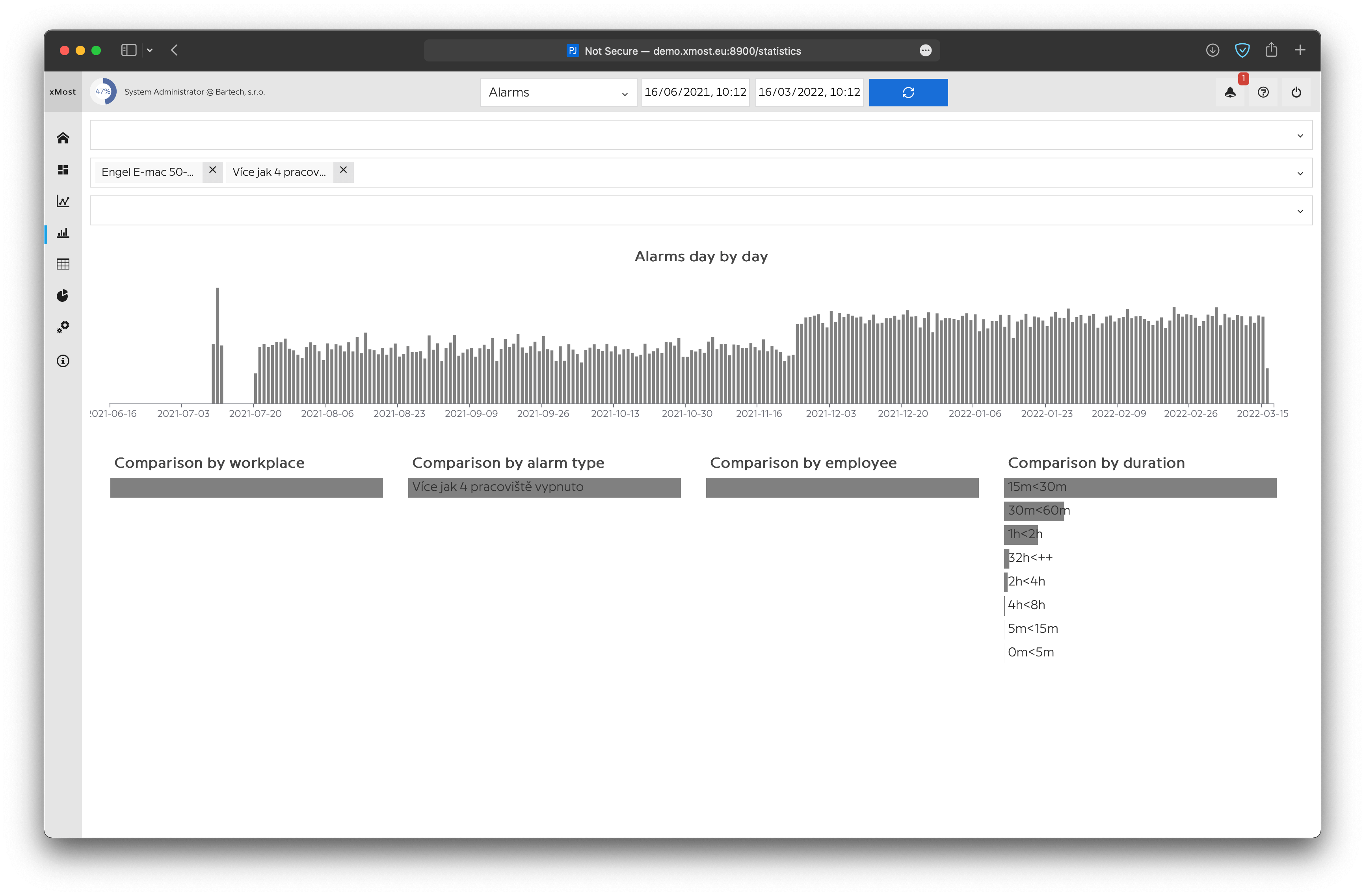

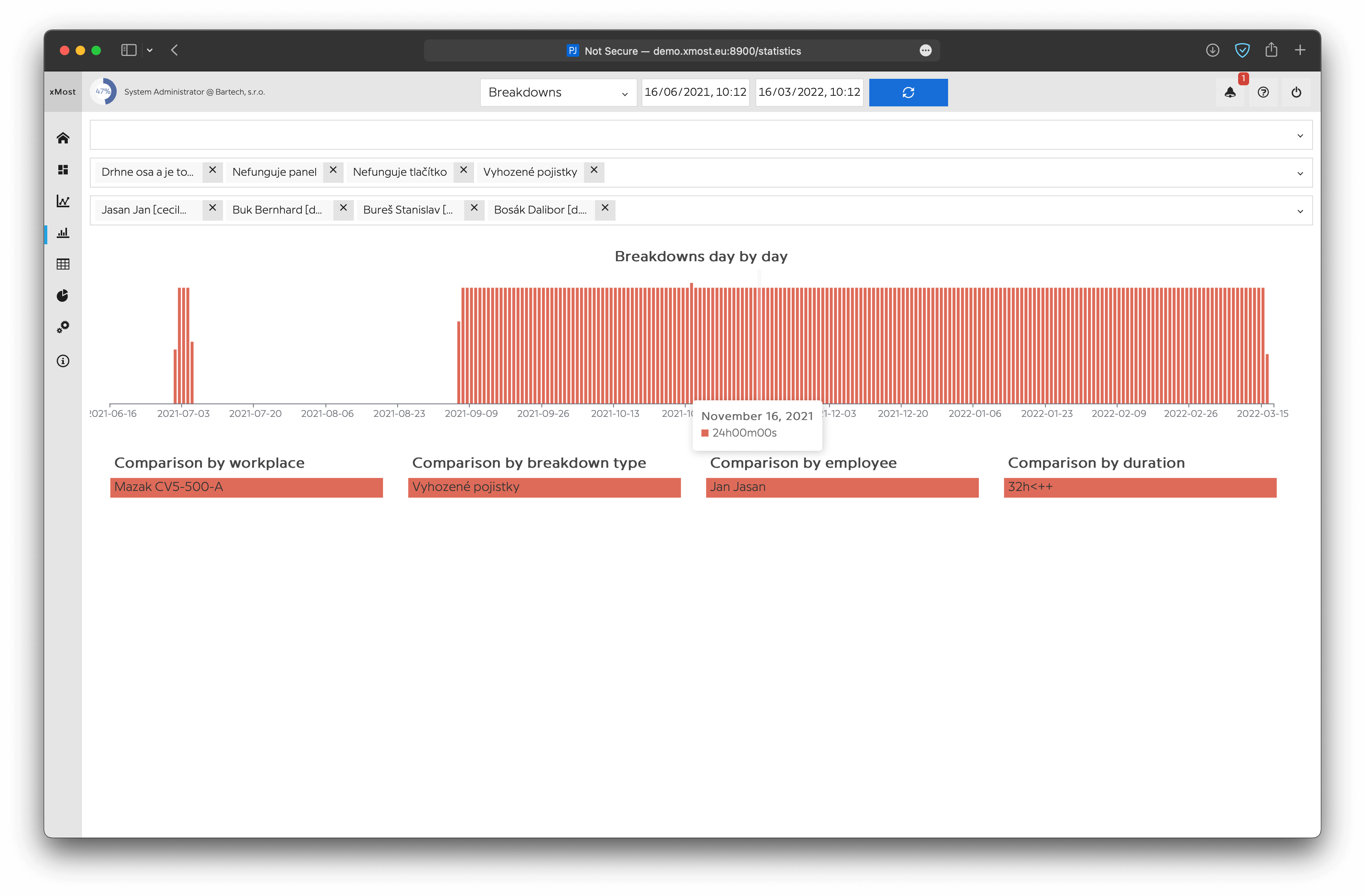

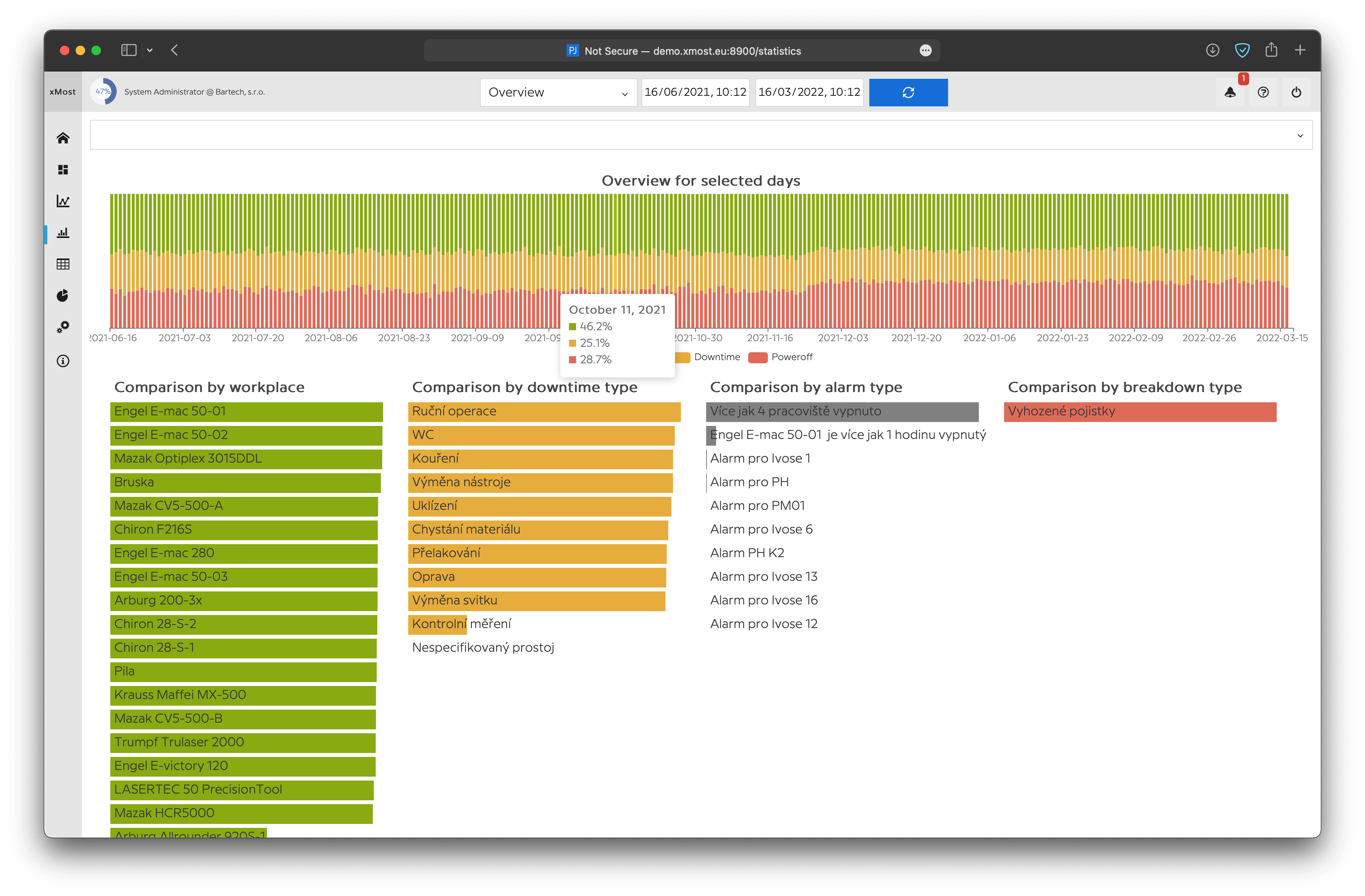

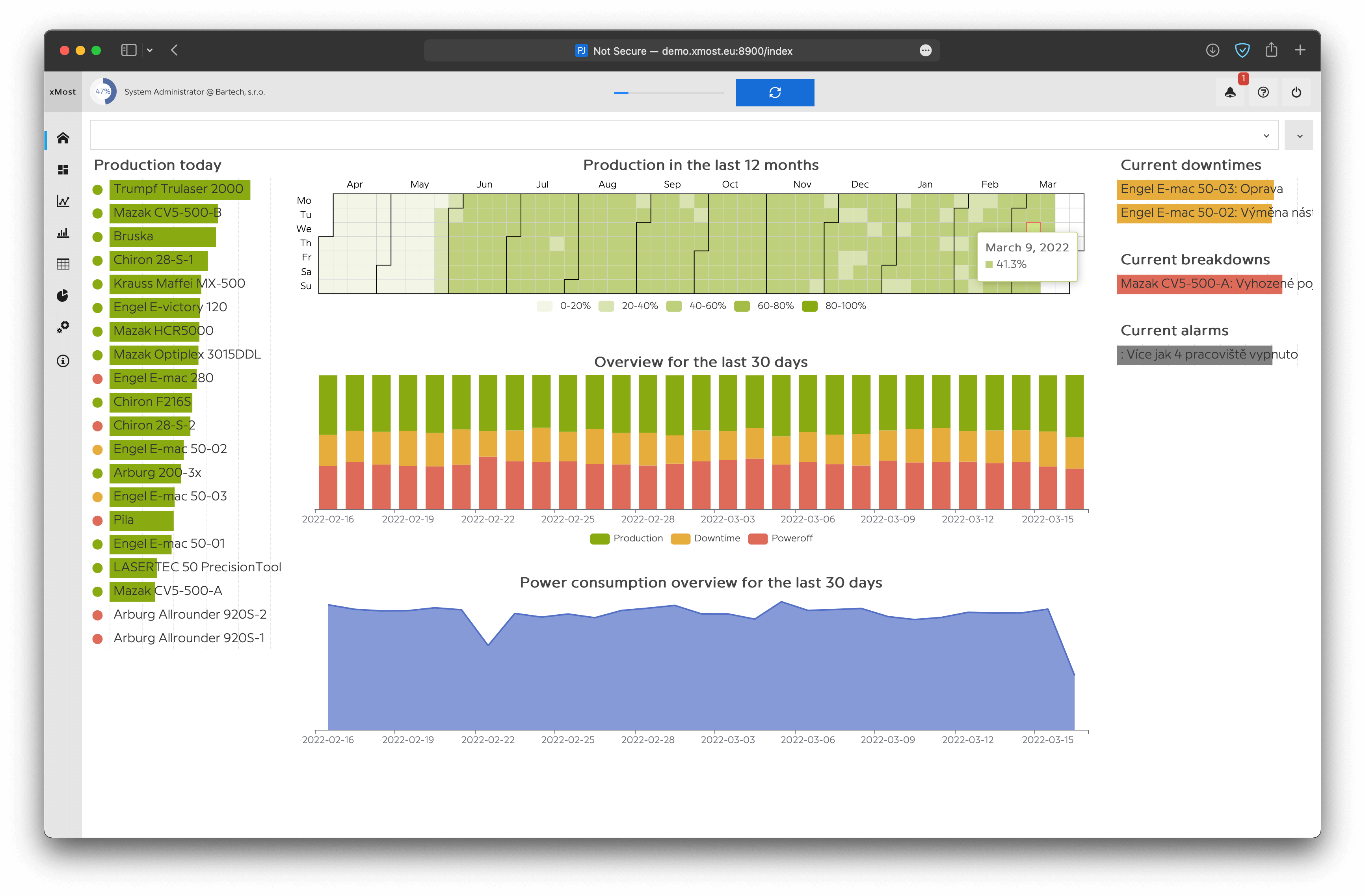

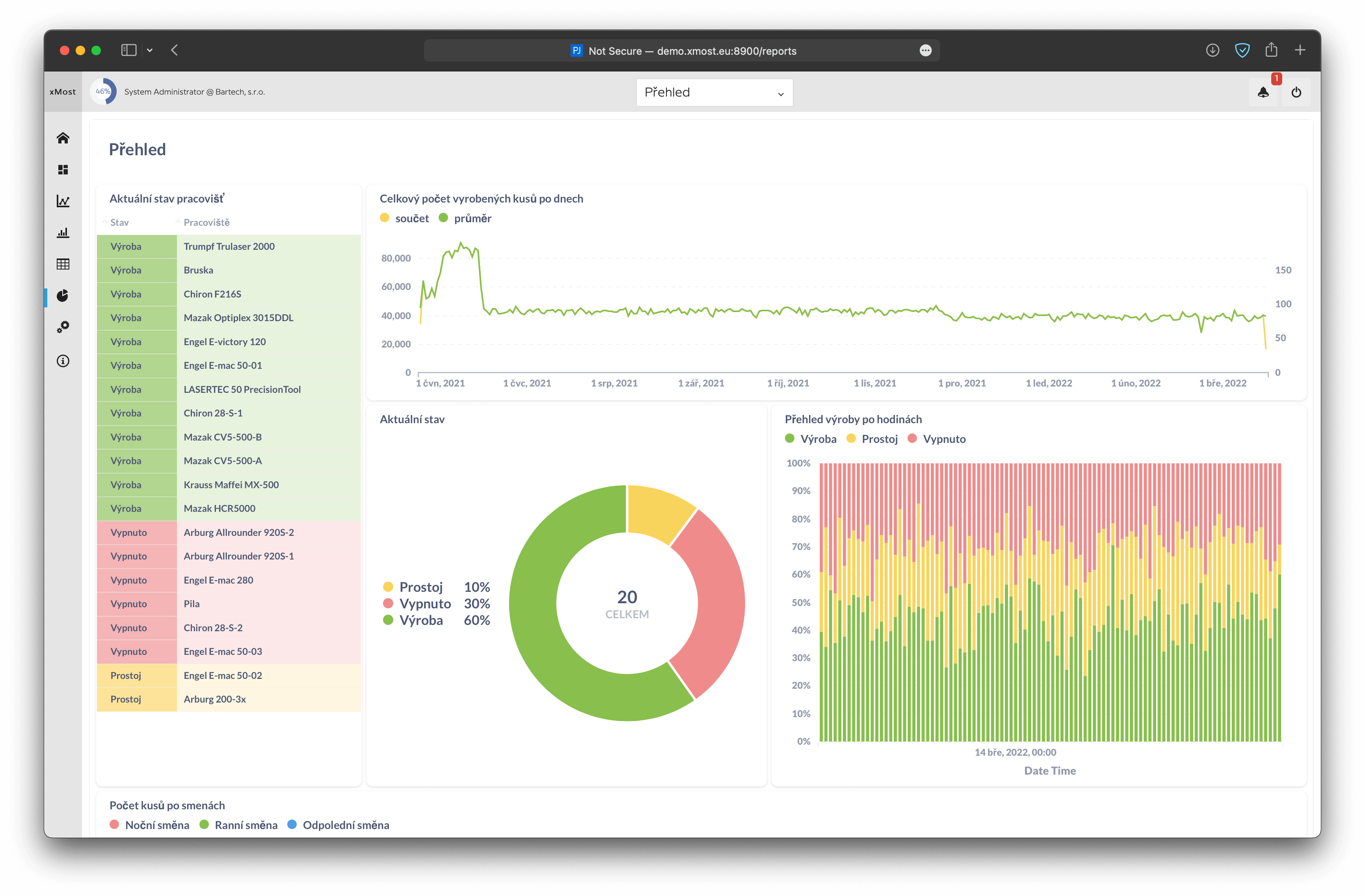

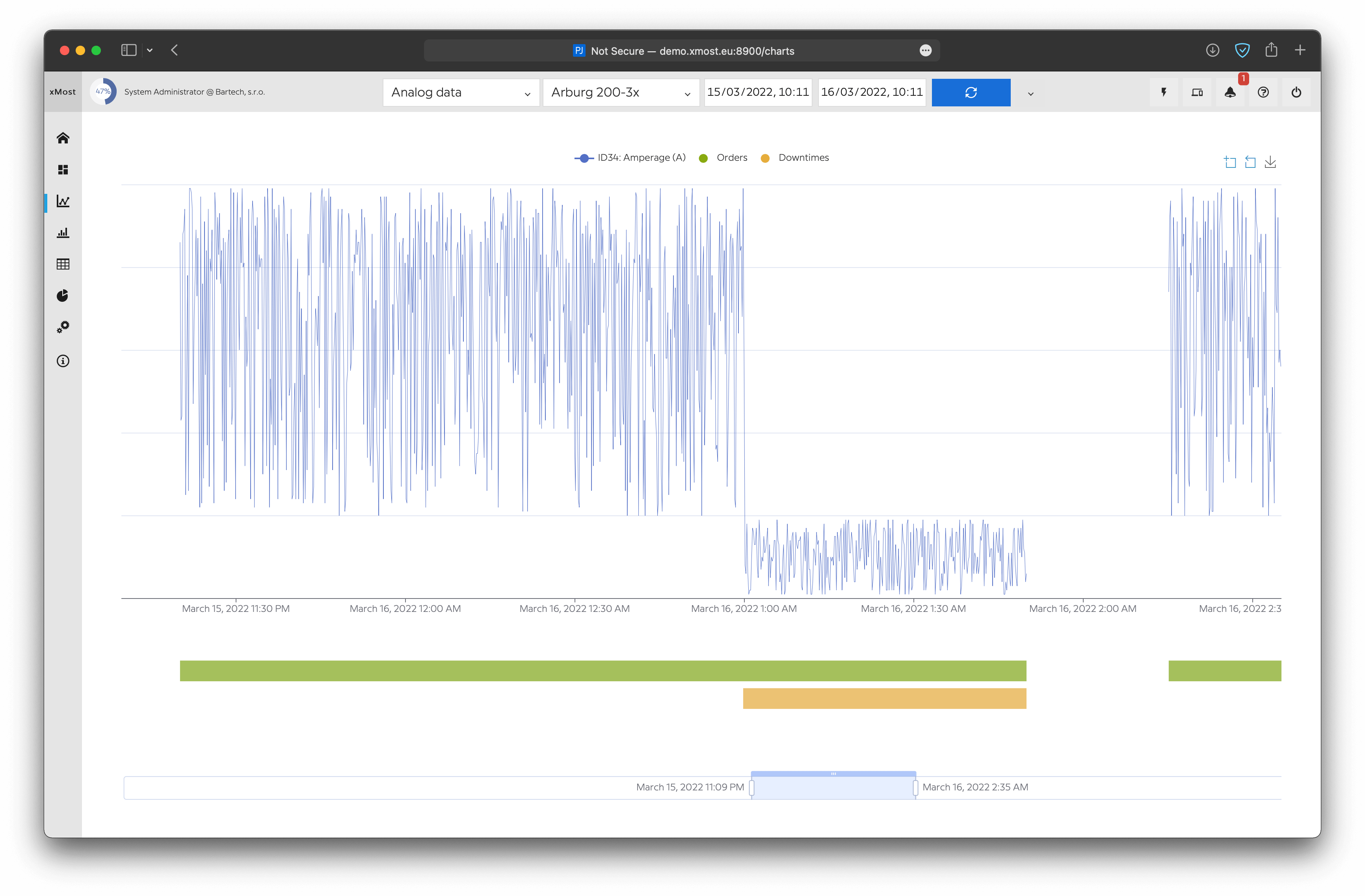

Actual images of this webservice §

Alarm service §

Description

Go service, that check for alarms and do proper action when alarms are active.

Installation Information

Install under docker runtime using this dockerfile image with this command:

Shell

$docker-compose up -d

Implementation Information

Check the software running with this command:

Shell

$docker stats

Terminal_service has to be running.

Additional Information

working with alarms in alarms table
creates and updates alarm records in alarm_records table
in alarms_table recipients has to be delimited by "," or ";"
result of sql query has to be in one column named result with 4 possible outcomes
- true => alarm result is ON
- false => alarm result is OFF
- something (string, number, ...) => alarm result is ON
- nothing (epmty) => alarm result is OFF

Example of sql queries

Creates alarm_record at the beginning of 12:00 on Saturday
- only on this day and hour, alarm is ON, alarm_record is created at the beginning "true period"
- on another hour and day, alarm is OFF, alarm_record is closed at the beginning of "false period"

select to_char(now(), 'Day') like '%Saturday%' and extract(hour from now()) = 12 as result

Creates alarm when more than 5 workplaces are offline

select (select count(id) from state_records where id in (select distinct max(id) as id from state_records group by workplace_id) and state_id=3)>5 as result

Alarms example:

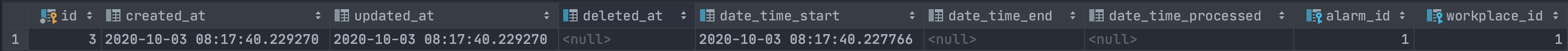

Alarm records example:

API service §

Description

API for xmost and xstock
A data transportation system that allows the communication between databases and their data

Installation Information

Install under docker runtime using this dockerfile image with this command:

Shell

$docker-compose up -d

Implementation Information

Check the software running with this command:

Shell

$docker stats

api_service has to be running.

API description

Load Data:

Stock states:
Example JSON: http://localhost:93/stock_states?date_from=2023-04-02T10:40:00&date_to=2023-08-04T14:40:00&format=json
Example JSON result:

Shell

  "Result": "OK, data limited to 1000 latest records in selected datetime",
  "Data": [
    {
      "ID": 21592,
      "CreatedAt": "2023-06-12T11:48:14.958297+02:00",
      "UpdatedAt": "2023-06-12T11:48:14.958297+02:00",
      "StockID": 1,
      "StockName": "Hlavni sklad",
      "ProductID": 4320,
      "ProductName": "Paleta přepravní 700x JD AZ204425 3160x2185mm - nové č.2 (varianta 3 - standardní profily, dle uchycení stroje na paletu))[800001020514079]",
      "SerialNumberID": {
        "Int32": 0,
        "Valid": false
      },
      "BatchNumberID": {
        "Int32": 0,
        "Valid": false
      },
      "StockLocationID": {
        "Int32": 0,
        "Valid": false
      },
      "Count": {
        "Int32": 3,
        "Valid": true
      },
      "Volume": {
        "Float64": 0,
        "Valid": false
      },
      "Note": ""
    }
  ]
}

Example XML: http://localhost:93/stock_states?date_from=2023-06-11T10:40:00&date_to=2023-06-13T14:40:00&format=xml
Example XML result:

Shell

  {{xmlString}}
      OK, data limited to 1000 latest records in selected datetime

        21592
        2023-06-12T11:48:14.958297+02:00
        2023-06-12T11:48:14.958297+02:00
        1
        Hlavni sklad
        4320
        Paleta přepravní 700x JD AZ204425 3160x2185mm - nové č.2 (varianta 3 - standardní profily, dle
            uchycení stroje na paletu))[800001020514079]


            0
            false


            0
            false


            0
            false


            3
            true


            0
            false

xStock Webservice §

Description

Go web service UI for stock system

Installation Information

Install under docker runtime using this dockerfile image with this command:

Shell

$docker-compose up -d

Implementation Information

Check the software running with this command:

Shell

$docker stats

System_service has to be running. No need to make a specific setup.

xStock Terminal webservice §

Description

Go web service for warehouses for use on touch terminals

Installation Information

1. Sign in into android obchodu
2. Install Shortcut Maker and Fully Kiosk Browser
3. Run Fully Kiosk Browser and edit Start URL to xStock Server URL
4. Run Shortcut Maker
5. Create a new shortcut from Kiosk Browser, rename to xStock and add icon from icon folder
